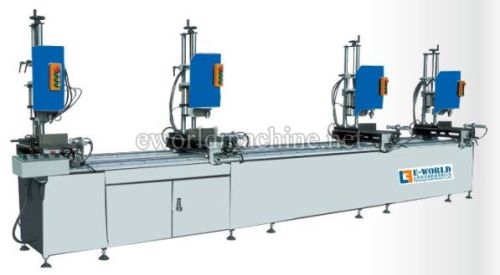

As a renowned Manufacturer, Supplier and Exporter of Aluminum Window Multi Head Drilling Machine, we bring you a wide range of immaculate quality. Our skilled professionals use only high-grade raw materials to ensure that our product meets the highest quality standards. The machine is the perfect solution for commercial application in various industries. The features such as longer service life and high durability make it an interesting proposition. To further add to the allure, it is available in customized specifications at cost-effective prices.
Product Description : Special for drilling of Aluminum window, curtain wall profile, suitable for long profile processing and mass production. Suitable for the profile less than 250*250mm,Max processing length 5000mm, pneumatic-hydraulic damp feeding system.
| Model | LJZX-04 |
|---|---|
| Main motor power | 4X0.75KW |
| Working voltage | 380V 50HZ |
| Overall dimension(L*W*H) | 5500*1100*1800mm |
| weight | 880KG |
| Operation air pressure | 0.5-0.8MPa |
| Max/Min distance between each group holes | 500-300mm |
| Max processing profile section size | 250*250mm |
| Max drilling hole diameter | 13 |
| Drilling head feeding travel | 125mm |
| Worktable size(L*W) | 300*220mm |
| Tolerance of drilling position | ≤0.3mm |
