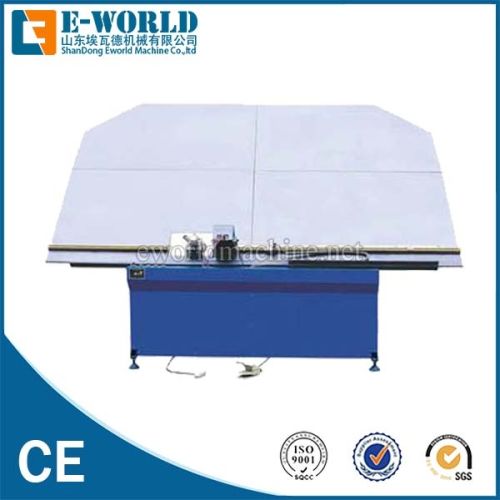

Aluminum Window Spacer Bending Machine

Having received acclamation from all quarters, we, a Manufacturer, Supplier and Exporter, rank among the top names in the industry. Aluminum Window Spacer Bending Machine on offer is available in a wide selection of sizes. It is manufactured using superior technology and high tech machinery. Our audit team works hard to keep the quality in synchronization with industrial quality standards. Durability, low maintenance and sturdiness make the offer irresistible. Lay your hands on this wonderful quality at nominal rates.
Machine Introduction :

• This machine is used for bending aluminum spacer in the production of insulating glass. It is under control of PLC system with orientation and bending carrying out automatically. Its performance is reliable and it is easy to operate.
• The main spare parts of electric sectors adopt the famous brands home and abroad or the supplier with internationally recognized quality certification.
• The main steel structure weldment adopt the vibrating stress release and natural release (key parts), which can release the stress at the most on the material itself and the welding point and maintain the long-term mechanical precision.
• The mechanical structure is rationally designed which is convenient to inspect and maintain.

Technical Parameter :

• Voltage - 380V 50Hz
• Power - 0.5KwAir Pressure 0.5-0.8MPa
• Aluminum Bar Rang 5.5-20mm
• Aluminum Frame Size Max - 2000*2000mm
• Min: 300*300mmBending Angle 90°
• Overall Dimension - 3400*1600*2460mm
• Weight - 400kg
