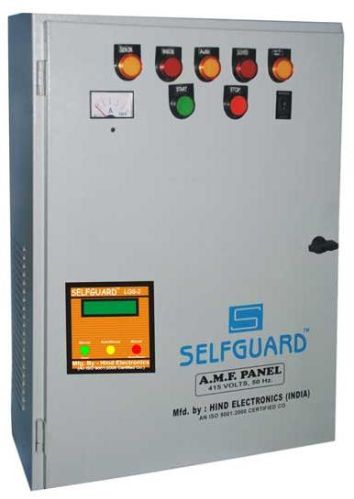

AMF Control Panel

The organization has vast experience in designing and manufacturing AMF Control Panel. The Selfguard AMF Control Panel that we provide A.M.F. panel is fabricated with M.S. sheet with powder coated paint finish. Additionally, the AMF Control Panels are designed as per the industry set norms. The latest technology AMF Control Panels that we offer are acclaimed for their reliable, hassle-free performance. We are a renowned name as AMF Control Panel Manufacturer and Supplier in Malerkotla, Punjab. Specifications Of Selfguard AMF Control Panel :

• 3 Pilot lamps to indicate mains on.
• 1 Pilot lamp to indicate generator on.
• 1 push button for manual stop.
• 1 push buttom for manual start.
• 1 switch to select battery Off/On.
• 1 Digital LGS-2c unit meter to indicate voltage, amp., frequency and rpm when the generator is running condition with all alternator safety features.
• 3 Electro mechanical relays for mains and 3 electro mechanical relays for generator according to the desired load.
• connection strip 12 way moulded in D.M.C. material .
• 1 copper bus bar to connect A.M.F. panel with main supply, generator supply and load.
• 1 connection strip 30amp. 6 way to connect A.M.F. panel with 12 volts battery, start solenoid,
• Stop solenoid and GCU control unit.

Working of Selfguard AMF Control Panel :

• Auto start diesel generator on mains failure (even on single phase failure) after a delay time of 5 seconds.
• Four more starting impulses if the engine does not start in one attempt after a delay time of each 10 seconds.
• Automatic lock out if generator fails to start.
• Auto changeover transfers load automatically on generator supply after the generator starts with a delay time of 5 seconds.
• Display of voltage, frequency, current and RPM. When the generator is in running condition.
• Under and over voltage tripping.
• Under and over frequency tripping.
• Under and over RPM tripping.
• Over current tripping.
• During the resumption of all three phases generator relays are de-energized and mains relays are energized with a delay time of 5 seconds.
• Generator set runs on no load condition and automatically stops after a delay time of 30 seconds.
