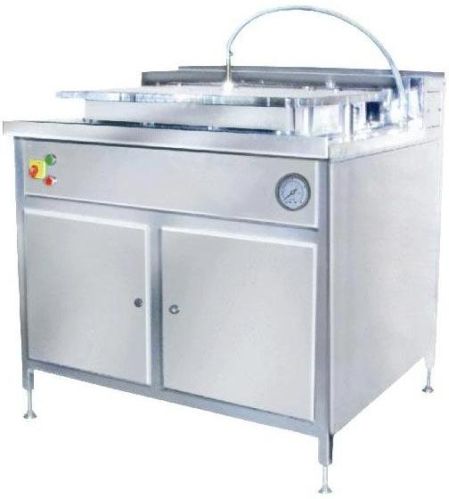

Ampoule Washing Machine

we are offering multijet ampoule & vial washing machine
description: -
multijet ampoule & vial washing machine is a simple, compact, versatile and a reliable ampoule & vial washing machine, with the latest gmp demand. the machine is enclosed in stainless steel construction with flexibility to wash 1ml to 20ml ampoules and 2ml to 100ml glass vials with the help of suitable change parts. the standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. multijet ampoule & vial washing machine is widely use in medium & small scale injectable organizations.
salient features:-
* positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.
* sound design concept of pressure tank for reverses & continuous supply of washes medias.
* both internal & external washing ensuring absolutely & continuous ampoule vial after sequential washing.
* acrylic top cover for clear view of washing events taking place in the machine
* on-line poly carbonates housing with p.p. replaceable filter cartridge of 5 or 10 micron of water for best possible washing.
* all contact parts of washing media are of s.s.
* in the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.
process operation:-
the dump loading procedure may be used, if ampoulesvials are received in ready to dump boxes, which will have exactly into the same number of ampoulevial and the pitch, as loading tray. alternatively, each ampoulevial has to be arranged into the tray. the loading trays is placed directly into the machine & the handle bar is lowered for ampoulevial for automatic centering of washing needles into the ampoulevial mouths. the top cover is also lowered & switch is operated for automatic sequent
washing cycle:-
1st wash dm water
2nd wash purified air
3rd wash dm water
4th wash purified air
5th wash distilled water (wfi)
6th wash purified air
