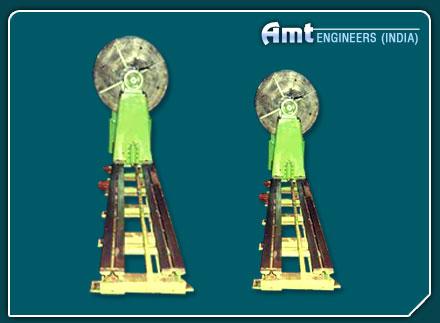

AMT Electric 1000-2000kg Coil Winding Machine, Certification : ISI Certified

Head Stock
Head Stock Body is casted from close grain cast iron. It is very rigid in design and strong enough to take maximum load. Head Stock is Oil filled complete with Oil filling hole, Oil level indicator and Oil drain hole. The main spindle is mounted on three anti-friction roller bearings (one cylindrical roller and one taper roller bearing at the front and one taper roller bearing on the rear). The head stock gear box is designed for four spindle speeds in both forward and reverse direction. The selection of spindle speed is by means of levers provided on the front side of head stock. All the shafts of head stock are mounted on antifriction roller bearings.
The gears and bearings are lubricated directly with the help of oil pump provided in the head stock. A five digit revolution counter is also fitted with the head stock through gearing from main spindle to register the number of turns of spindle. Head stock is provided with 1200 mm dia, face plate having T-slots and holes for holding the winding moulds. A 76.2 mm spigot locating recess is provided on face plate to centrally locate the mould.
Base
Base is casted from close grain cast iron. It is very rigid in design and strong enough to take maximum load. The Head Stock, Motor, Fluid Coupling, Thruster Brake etc. are mounted on the Base. The Base is provided with Foundation Holes of dia 20 mm.
Bed
The Bed is fabricated from I-Section and steel plates. It is Very Rigid and sturdy in construction so as to take maximum load. The Bed is machined and grinded on the top surfaces for smooth movement of the tail stock, the bed is provided with guide ways and slots throughout the length of bed to clamp the tail stock on any position of the bed. Rack is provided on the bed for easy movement of the tail stock. It is provided with Foundation Holes of Dia M20 for foundation. Front and rear stoppers are also provided to restrict the tail stock movement.
Tail Stock
The base of the tail stock is fabricated from steel plates. The main body of the tail stock is casted from close grain Cast Iron. The tail stock unit is moved on the bed by means of a rack and pinion arrangement. The Tail stock unit is provided with Gun Metal Liners so as to minimizes the wear and smooth movement over the Bed. Four Bolts are provided to clamp it on any position on the bed.
