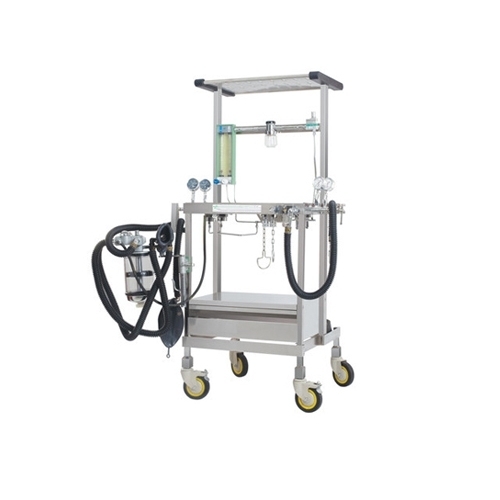

Anaesthesia Machine

Our firm is among the trusted names engaged in offering a wide range Anaesthesia Machine. Our professionals develop these products as per industry parameters using the advanced material and superior techniques. To preserve the quality, our quality analysts also inspect the quality of these products as per universal industry standards. Our patrons can avail these products in diverse specifications and low prices.

Features :

• Easy to use
• Sturdy construction
• Reliable in work

Product Details :

• Anti static Castor wheels with Brakes
• Provided a stainless steel tray at table top position
• Compact Yoke : 2 nos. each for oxygen & nitrous oxide gas specific (Pin-indexed) Yokes with S.S. Clamping bars
• 2.5” Pressure Gauges : 2 nos. for oxygen & 2 nos. for nitrous oxide fitted at convenient angle to show the cylinder pressure
• 2” pressure Gauge : 1 no. for oxygen fitted at the convenient angle to show the line pressure
• Oxygen outlet : 2 nos. manifold arrangements type oxygen outlet points provided for driving ventilators, B.P.C. flow meter, etc.
• Changeover Mechanism : For open & close circuit systems a easy lever movement mechanism provided at table top level along with a push bottom for emergency oxygen
• Regulators : 2 nos. NO regulators with cut off facility & 2nos. O2 Regulators (Present)
• Rotameter : 230 mm, long accurately calibrated retaining bobbing flow-meter. Oxygen-100 ml/min. to 8 LPM & nitrous oxide 200 ml/min. To 12 LPM
• Vaporizer : Vaporizer with bottle supplied as standard accessories
• Non-Return cum Pressure Relief Valve : Blow of when pressure exceeds 200cm of H2O
• Oxyfailure Alarm : Audio-visual automatic alarm is activated if oxygen supply pressure falls to 205 Kpa
• Patient Circuit(Standard Accessories) : Bag Mount, Expiratory Valve, Angle mount, Re-breathing bag (2 litre) Corrugated tube, Face Mask (no. 4) & Catheter Mount one each
• Provision for use of : Circle absorber (double chamber), Ventilator (artificial respirator), Tec Halothane Vaporiser
• Optional Accessories : Circle absorber, Bains circuit, Ventilator, O₂ & N₂O regulator with tubing connection, pulse Oximeter, ECG monitor / cardio monitor
