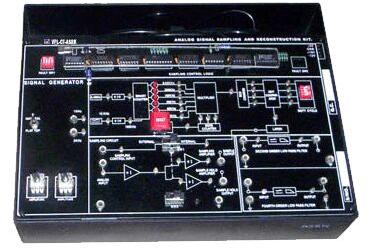

Analog Signal Sampling & Reconstruction Trainer (VPL-CT-ASRK)

Sampling Frequency2,4,8,16 & 32 KHz (Switch Selectable).
Fault Switches8 nos. through 4 way DIP switch for troubleshooting at different blocks.
On – Board GeneratorSynchronized 1 KHz Sinewave (5 Vpp).
Duty Cycle0 – 90% in decade steps (switch Selectable).
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

(27)

Ask for more detail from the seller

Report incorrect details

Sampling Frequency2,4,8,16 & 32 KHz (Switch Selectable).
Duty Cycle0 – 90% in decade steps (switch Selectable).
CabinetEnclosed in ABS plastic cabinet with detachable cover.
Power220V AC ±10%, 50/60Hz mains operated.
Low Pass FiltersButterworth 2nd & 4th Order Filter Cut – off frequency 3.4 KHz.
Fault Switches8 nos. through 4 way DIP switch for troubleshooting at different blocks.
On – Board GeneratorSynchronized 1 KHz Sinewave (5 Vpp).
Interconnections2/4 mm socket.
AccessoriesSet of Patch Cords, User’s manual.
Crystal Frequency6.4 Mhz.
Test PointsMore than 50.

SALIENT FEATURES

LIST OF EXPERIMENTS

Signal sampling and Reconstruction Technique..
Aliasing & Effect on Reconstruction of signal due to various sampling frequencies.
Effect of Amplitude of Reconstructed Signal by varying sampling Pulse duty Cycle in Sample & Sample/Hold output.
Comparison of 2nd & 4th order butter worth Filters.
Signal Sampling and Reconstruction using External Sampling input.
