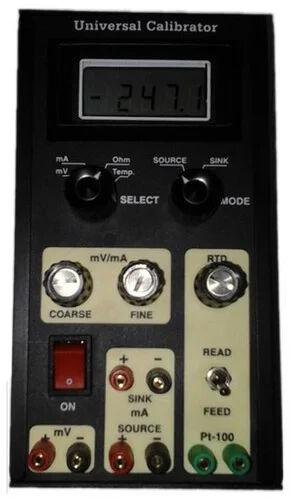

Manual 220V Analog Universal Calibrator, For Calibration, Dimension : 170 (H)* 90(W)*45(D)

Name: Analog Universal Calibrator
Brand: SBK
Price: 13000 INR
Availability: InStock

₹ 13,000 - ₹ 15,500 / Bag

Company Information

Ask for more detail from the seller

Report incorrect details

Brand NameSBK
ConditionNew
Country of Origin220V
Number Of FlowerAnalogue Universal Testing Machine
Total Carbohydrate6 Month
HumidityMax 90% Rh non condensing
Availability1 kg approx
MV0-199.99
Capacity10
Temperature-200 to 600 deg C
Operating Temp0 to 50˚C
Power SupplyTwo Batteries of 9V, Size PP3 (optional) battery Eliminator for 230 V AC operation – Uni calibrator suppliers
MA0-25
Battery Life6 Hours in case of continuous operation for full current output 30 hours in case of continuous operation for mV/RTD output.
Resistance500 Ohm
Automatic GradeManual
FeaturesHandheld, Battery operated,
Storage Temp0 to 70˚C – Uni calibrator suppliers
Dimension170 (H)* 90(W)*45(D)
Indication4 ½ digit LCD display with Battery low, Over-range & Polarity Indication – Uni calibrator suppliers
ApplicationCalibration

eatures– uni calibrator suppliers

handheld, battery operated, portable source and sink for mv, ma, & rtd(pt 100 din 43760)
uni calibrator – pt 100 reading directly in terms of temperature.
uni calibrator – independent calibration facility for mv, ma, ohm, temp.
typical accuracy 0.1% ± 1 digit
optional battery eliminator for operation on 230v ac
uni calibrator – optional portable loop power supply for 2 wire transmitter calibration.

technical specification – -uni calibrator suppliers

power supply	two batteries of 9v, size pp3 (optional) battery eliminator for 230 v ac operation – uni calibrator suppliers
indication	4 ½ digit lcd display with battery low, over-range & polarity indication – uni calibrator suppliers
operating temp	0 to 50˚c
effect of temp. change	0.002% per deg. c ref 25˚ c
humidity	max 90% rh non condensing
battery life	6 hours in case of continuous operation for full current output 30 hours in case of continuous operation for mv/rtd output.
storage temp	0 to 70˚c – uni calibrator suppliers
size	170 (h)* 90(w)*45(d)
weight	1 kg approx
