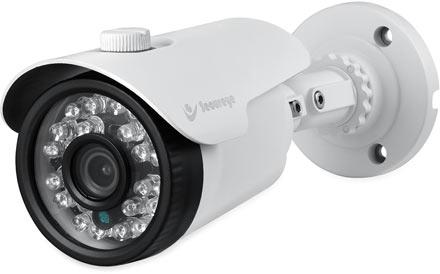

1.3 megapixel cmos sensor 3.6 mm lens 0 lux/f1.2 min. illumination on screen display (osd) technical specification sensor 1/3" megapixel cmos sensor lens 3.6mm signal pal/ntsc resolution 1.3mp / 960p video output ahd/cvbs effective pixels 1280*960(p) min.illumination 0 lux/f1.2(ir on) ir led 24 ir led ir range 20m photosensirive resistance 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, ir-cut, infrared lamp linkage shutter 1/50(1/60) seconds to 1/100,000 seconds synchronization internal video output 1-channel bnc ahd/cvbs high definition video output blc auto osd available awb automatic / manual / day / night day/night auto(icr) / color / b/w transmission distance over 500m via 75-3 coaxial cable temperature/ humidity -10â°c ~ +60â°c/ less than 95%rh power consumption 4w max power supply dc 12v motion detection available
