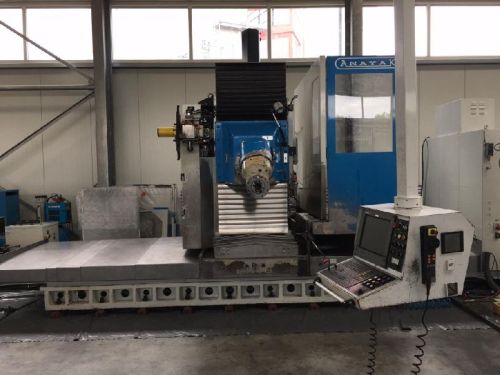

ANAYAK HVM 3300 Bed Milling Machine

Technical data
cnc-bed milling machine
manufacturer anayak
type hvm 3300
built 1998
travels x-y-z 2.700 x 1.200 x 1.000 mm
travels:
x – axis 2.700 mm
y – axis (cross) 1.200 mm
z – axis (vertical) 1.000 mm
feeds:
feed all axis 2 – 10.000 mmmin
rapid feed all axis 10.000 mmmin
workpiece table
measurement 3.300 x 1.000 mm
max. Table load 5 tom²
milling spindle
tool taper iso 50, din 69871
clamping-bolt din 69872 form a
min.max. Speed 20-4.000 min-1
power 30 kw
autom. Milling head indexing 2,5° in in both milling head axis
tool changer
tool places 40
max. Tool diam. 115 mm
on free neighbour places 200 mm
max. Tool length 350 mm
max. Tool weight 25 kg
tool change only in horizontal spindle position
control heidenhain tnc 426
accessories:
coolant equipment with chip conveyor, autom. Milling head indexing in both levels,
oil coolant aggregate for cooling of the main spindle gear, 40-fold tool changer,
elektr. Handwheel, operation panel moveable.
