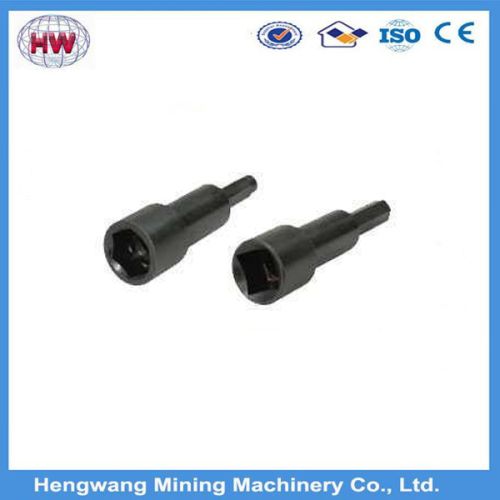

Anchor Agitator

We are offering anchor agitator.
Anchor stirrer used with anchor drilling machine, used for roadway support in the resin anchor rod agitation and installation, screw down the bolt nut
1, connect jumbolter and anchor cable steel strand, used for mixing resin anchoring agent, rapid installation.
2, is suitable for the steel strand, ф ф 15.24 mm to 15.24 mm.
3, drill tail work size: b = 19, b = 22.
4, used with anchor drilling machine, used for mixing and installation of resin anchoring bolt, screw down the bolt nut.
Type adapt to the bolt specification connected to the drill size hexagonal nut size on side party nut on the edge
jqg16 b19 m16 b19 s24
jqg18 b19 m18 b19 s27
jqg20 b19 m20 b19 s30
jqg22 b19 m22 b19 s32
jqg24 b19 m24 b19 s36
jqg28 b19 m18～m20 b19 s28
jqg16 b22 m16 b22 s24
jqg18 b22 m18 b22 s27
jqg20 b22 m20 b22 s30
jqg22 b22 m22 b22 s32
jqg24
b22
m24
b22
s36
