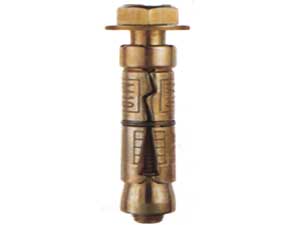

Anchor Fastners

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer a wide variety of anchor fasteners used for anchoring and fixing products with commendable ease. We offer different fastners for heavy duty fixings, chemical fixings, cavity fixings, light fixings, general purpose fixings, lifting anchors, and self drill fixings.

View More Details

Send Enquiry

Company Information

MAHAVEER ENGINEERING

BBD Bag, Kolkata, West Bengal

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Ref	Bolt Size	Shield Length	Fixing Thickness (mm.)		Drill (mm.)	Application Torque for Concrete (NM)	Average Tensile Failure Load (KN)	Safe Static Load
CPB/CCB	M6	45	10 25 60	5	12	6.5	9.6	2.4	1.8
CPB/CCB	M8	50	10 25 60	5	14	15	15.0	4.4	3.3
CPB/CCB	M10	60	15 30 5 75	5	16	27	20.0	5.9	4.4
CPB/CCB	M12	75	15 30 75	5 10 35	20	50	29.9	9.2	6.9
CPB/CCB	M16	115	15 35 75	5 10 35	25	120	69.3	17.5	13.1
CPB/CCB	M20	130	15 30 100	5 10 30	32	230	99.5	25.7	19.3
CPB/CCB	M24	150	75 160 120	5 40 75	38	400	117.0	31.1	23.5
