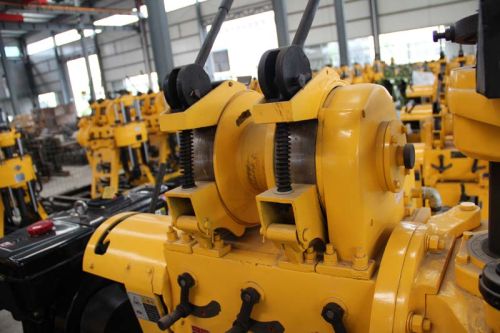

Anchoring Drilling Machine

we are offering Anchoring Drilling Machine.
APPLICATIONS:
MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.
2. FEATURES:
Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
Large powered, top-drive head has big torque and pull force, wide rotary speed range.
Holder and unscrew device, working efficiently, labor saving.
2-tier guiding rail, easy to find hole position.
Technical Specifications
Hole dia(mm) 110-200 Drilling depth(m) 100-60
Hydraulic power pack type Variable(Electric motor)
Power model Y200L2-2 CC490Q
Power and ratings 37Kw/2950r/min 36Kw/2800r/min
Hydraulic system pressure(Mpa) 20
A-top drill head speeds(r/min)
Ⅰseries 0-100 0-95
Ⅱ series 0-30 0-29
A-top drill head torque(Nm) Ⅰseries 1600
Ⅱ series 5000
B-top drill head speed(r/min) 0 10
BB-top drill head torque(Nm) 6400
lift/feed speeds (m/s) 0-0.16/0-0.21
Max pull force/Max push force(N) 80000/57000
Max feed stroke (mm) 2000
Drilling angle(°) Elevation20°Depression angle100°
mast Raised height horizontally(mm) 300
Drill body weight (kg) 1800(approximately)
Powerpack weight(kg) 700(approximately)
Mount type Plate mounted,drill body separated from power
CHONGQING GOLD MECHANICAL & ELECTRICAL EQUIPMENT CO.,LTD
Established in 2009,Gold is a high -tech enterprise specializing in design,manufacture and sale of geological instrument.
Gold's products are manufactured stricity in accordance with industrial standard and have passed through quality and technical standard evaluation as well as quality inspection. In 2010,Gold passed through ISO9001 International Quality System Certification.In July 2010,Gold obtained provincial certification of high-tech enterprise,becoming an excellent supplier with outstanding product quality in China.
Gold's Products Spread All Over The Word
Provide Professional Technical Training
Excellent Team And Best After Sales Service
We are ready to provide perfect service for you !
