Anemometer

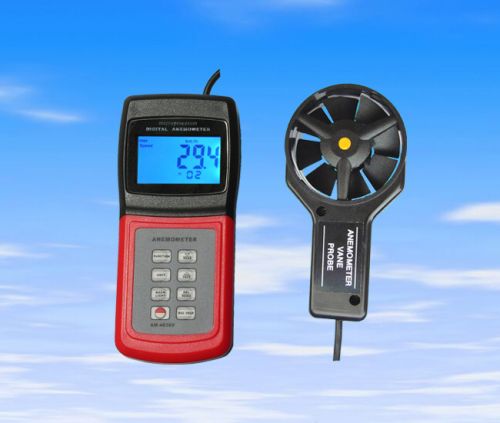

We are offering anemometer am-4836v.
Application: installation, debug and repair for refrigeration industry, ventilation duct, environment monit-or, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
Model:am4836v
display 0.5”(13mm)4-digitlcd
measurement unist air velocity:ms,kmh,ftmin,knots
air flow:cmm(m3min) cfm(ft3min)
beaufort scale:force
wave height:m
temp:℃&℉
data hold maximum value
data memorized 24groups
sampling rate reading per second approx
sensors air velocityflow sensor:
conventional angled vane arms
waith low-friction ball bearing
temperature sensor:
precision thermistor
automatic power off 0-9minutes set by users
data output rs232c serial interface
operating temperature 14℉to140℉(-10℃to60℃)
operating humidity max.80%rh
power supply 260g(0.571b)including batteries&probe
dimensions main instrument: 156x67x28mm(6.1x2.6x1.1”)
c
air velocity range resolution accuracy
ms (meters per sec) 0.4-45.0 0.1 ms ± (2%+0.1ms)
kmh (kilo-metershour) 1.4-162.0 0.1 kmhr ±(2% +0.1kmhr)
ftmin (feet per minute) 80-8860 0.1 ftmin ±(2% + 1ftmin)
knots (nautical mph) 0.8-88.0 0.1 knots ±(2% +0.1 nots)
air flow
cmm (cubic metersmin) 0-9999 0.001 to1 ±(2% +1m³min)
cfm (cubic ftmin) 0-9999 0.001 to1 ±(2% +1ft³min)
beaufort scale 0-12 0.1 ±0.5
direction 0-360° 22.5° ±22.5°
wave height 0-14 0.1 ±0.1
