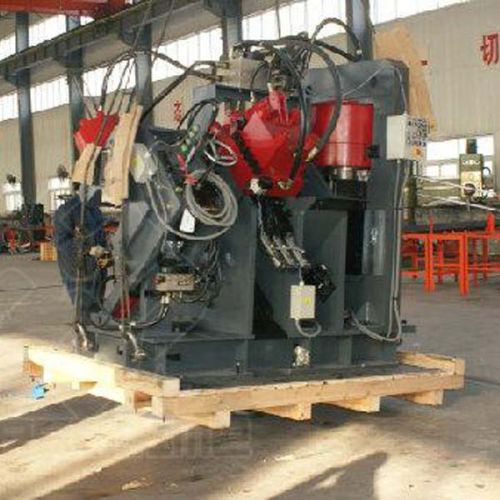

Angle Lines CNC Machine, Brand Name : SUPERTIME

We are offering high speed angle lines cnc machine.
feature of high speed angle lines cnc machine
1) main hydraulic components, pneumatic elements, electric elaments was choosed international brand ,which unsure the system can run long time reliably
2) "x" axes is equipped with an encoder , combine closed-loop control system ,realise position precisely .
3) shearing unit : single blade , which will save raw materials, equipped with independent press unit, press steady, enhance press force,which will ensure the machine running stably
specification of high speed angle lines cnc machine
function punching marking shearing
model jx1412a
angle size q345 40ã�40ã�3~140ã�140ã�12
angle size q235a 40ã�40ã�3~140ã�140ã�14
max. Punchingcapability(dã�t) q345 î¦26ã�12
max. Punching capability(dã�t) q235a î¦26ã�14
punching nominal force(kn)550
marking nominal(kn) 6001000
shearing nominal(kn) 1800
work piece length max.(m) 10 12
adjustment range of stadia(mm) 20-110
punchers number each side 23
marking groups 4
dimension mode(mm) 14ã�10
shearing mode single blade
axes number 3
in feed speed(mmin) 50
overall dimension(m) 24.526.5ã�7ã�2.2
net weight(kg) 17000
our service for angle lines cnc machine:
1) two engineers will go to end user plant to install and debuggation ,do basic operate training to ensure the workers operate the machine well.
2)sale service: online problem checking, or arrange engineer visiting
