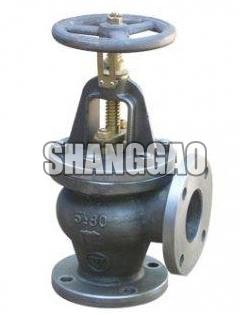

Angle Type Globe Valve

We are one of the reliable names engaged in manufacturing, supplying and exporting Angle Type Globe Valve. The Angle Type Globe Valve is made using carbon steel, stainless steel, alloy steel that ensure resistance against corrosion, sturdiness and excellent weatherability. The Angle Type Globe Valve is designed for smooth flow of fluid.
Construction :

• The inlet and outlet passageways of the valve form a right angle, which allows the medium flowing through the valve, thus generating a certain pressure loss.
• Baiting openings are designed as two types: one with pipe connector and another flat.
• The value is provided by erosion-proof and corrosion-resisting guard plates that protect valve body from being flushed and corroded by the medium at opening

Technical Specifications :

• Design standard : ASME B16.34, GB/T 12235, BS1873
• Face to face standard : ASME B16.10 GB/T 12221
• Flange ends : ASME B16.5, GB/T 9113
• Pressure test : API 598, GB/T 13927


Product Specifications :

• Body material : carbon steel, stainless steel, alloy steel
• Nominal diameter : 1/2", 24", DN15~DN600
• Pressure range : Class150, 2500, PN10~PN420
• Working temperature : -196^oC, 560^oC
• Operation :  wrench, worm gear, electric,etc.

Design Features : Sealing surface adopts sphere sealing, making the sealing face line-contact with each other, guaranteeing reliable tightness, and preventing scarring. High abrasion-resisting and erosion-proof performances. The valve is designed as a back seal structure, ensuring no medium leakage occurs in the stuffing box, reliable tightness and online replacement of packing. Its valve stem sealing is realized by the collaboration of flexible and woven graphite, ensuring a more reliable tightness.

Application : Chemical fertilizer, mining, metallurgy, aluminum oxide and other industries
