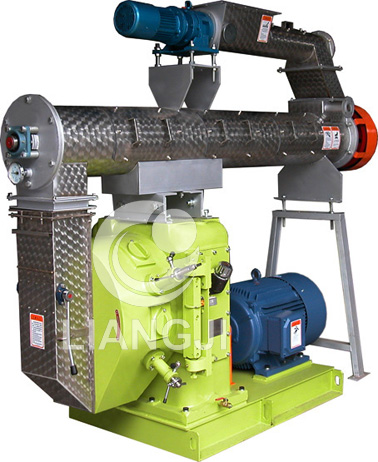

Animal Feed Pellets Making Machine, Brand Name : Liangji

We are offering animal feed pellets making machine, animal feed pellet mill is a main pelletizing machine used in feed plant, and it is widely used in the pelleting process.
1. What's liangji's advantages? why?
liangji pellet mills provide all the tools to produce pellets at high capacity, low energy consumption and with superior pellet quality.
Due to special die and roller design, the production cost has been reduced to a minimum. Because of the heavy duty gearbox construction, the liangji pellet mills have proven to be the strongest and most reliable machines on the market.
2. Best price and service come from us. Improved design make you save energy for maximum. More details as following:
* this pellet mill is the latest design of us. Firstly, optimized technical data for dies and output is increased significantly.
* safety pin is changed to axle overload protection system; easily assemble and disassemble, safe and dependable.
* the driving wheel is advanced to make oil seal can be replaced easily and service life of main bearing is extended.
* the feeding chute is advanced and pellets can enter cooler directly to avoid cross pollution.
* the shut off system for feeder and conditioner is used to reduce overflow of steam; cooking efficiency is increased and makes materials contact with steam fully; the gelatinization degree can be increased 3%.
* the position system by back bearings of main shaft is adopted to prevent vibration caused by spline and ensures current of main motor stable and extends service life of rollers and dies.
* protuberant screws are used to connect die clamps with advantages of stable operation and longer service life of die clamps.
* the imported bearings and oil seal are adopted to guarantee longer service life.
3. Main parameters
model power of main motor capacity power of screw dm of die power of conditioner
szlh25 18.5/22kw 1.2-1.8t/h 0.55kw 250mm 2.2kw
szlh32 37/45kw 2.8-4.5t/h 0.75kw 320mm 2.2kw
szlh350 55kw 4-5.5t/h 0.75kw 350mm 2.2kw
szlh400 75/90kw 7-9t/h 1.5kw 400mm 5.5kw
szlh420 110kw 9-12t/h 1.5kw 420mm 5.5kw
szlh508 132/160kw 12-17.5t/h 1.5kw 508mm 7.5kw
szlh558 160/200kw 15-22t/h 1.5kw 558mm 7.5kw
szlh678 200/220kw 18-25t/h 2.2kw 678mm 11kw
note: capacity is according to pellet with φ 4mm, length 6-8mm
