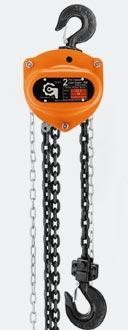

Classic Series Chain Pulley Block, Grade : ANSI, ASME

₹ 6,000 - ₹ 16,000 / Piece

MaterialIron, Metal, Stainless Steel
Surface FinishingPolished
GradeANSI, AS, ASME
TechnicsHot Dip Galvanized
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.3/5

Member Since 3 Years
Nature of Business Manufacturer
GST No. 07AAACG4291L1ZE

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
MaterialIron, Metal, Stainless Steel
GradeANSI, AS, ASME
FeatureAccuracy Durable, Auto Reverse, Corrosion Resistance
TechnicsHot Dip Galvanized
Surface FinishingPolished
CertficationISO 9001:2008 Certified
Capacity1 Ton - 5 Ton
Load Capacity5 To 10 Ton

Confirming to IS 3832 – 2005
Modular Design and High Performance & Life of powder coated components.
100 % Designed and Manufactured in India (made in India Logo)
Low Headroom, Light weight, compact and durable, minimized hand effort,
Manufactured & assembled on advanced Production processes which ensures Zero Defect.
Passed through Multilevel Quality Checks.

SALIENT FEATURES

LOAD CHAIN SPROCKET

Steel recommended as per IS 3832, ultra fine quality fully pocketed cast steel & precisely machined to suit calibrated load chain & roller bearing for free rotation, reducing effort for lifting. Improved life cycle and smooth running.

HOOK

Heavy duty steel forged compact hook for top& bottom hook assembly with safety latch, capable to withstand shock loads manufactured as per IS 15560-2005.

SAFE BRAKING ARRANGEMENT

Self-actuating screw disc type mechanical braking arrangement with non-asbestos based brake disc provides long lasting and high performance.

GEAR SET

Highly efficient, compact and hard wearing gears manufactured from alloy steel, precisely machined and processed.

TRIPLE PROTECTION COVER

Heavy duty steel coated cover protects from atmospheric conditions, external shocks and improves life of complete chain block.

CHAIN GUIDE ROLLER

Double chain guide rollers ensures accurate alignments & smooth movement of load chain.

RATCHET & PAWL ARRANGEMENT

2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.

BEARINGS

High quality steel housing ball and needle bearings improves efficiency.

Technical Details

MODEL	CL1S	CL2S	CL2D	CL3S	CL3D	CL3F
CAPACITY (TON)	1	2	3	3	5	10
STANDARD LIFTING HEIGHT (M)	3	3	3	3	3	3
RUNNING TEST LOAD (TON)	1.25	2.5	3.75	3.75	6.25	12.5
HEADROOM H (MM)	410	480	580	605	770	950
NO. OF FALL	1	1	2	1	2	4
LOAD CHAIN & PITCH (MM)	6.3X19	8X24	8X24	10X30	10X30	10X30
HAND EFFORT IN (KG)	25	30	37	37	36	39
DIMENSION (MM) A	172	200	220	292	292	473
DIMENSION (MM) B	155	178	178	190	190	192
DIMENSION (MM) C	27	34	38	38	48	62
DIMENSION (MM) D	36	46	50	50	63	82
PACKING MEASURMENT (LXWXH) (CM)	30X20X18	38X24X20	43X34X30	45X44X36	47X44X36	53X51X47
NET WEIGHT (KG)	13.5	20.5	26.5	33.5	39	78
EXTRA WEIGHT PER METER OF EXTRA LIFT (KG)	1.6	2.2	3	3.6	5.2	9.6
