Contact SupplierWe are offering 5.8ghz cpe antenna.
Jhcpe-5159-18d25ca

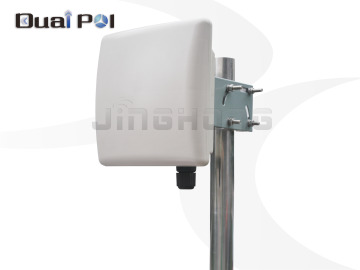

jhcpe-4959-18d25ca is a high performance mimo cpe antenna designed for the 5 ghz band, and is well suited for multipoint applications where high gain and wide coverage is desired.its dimension is 200*200*100mm.
ip65 waterproof level
uv protected and durable abs radome
5ghz integrated mimo cpe application
rohs compliant
electrical
model jhcpe-5159-18d25ca
frequency range 5100-5900 mhz
gain 18 dbi
vswr 1.5
3db beam-width, h-plane 25â°
3db beam-width, e-plane 25â°
polarization vertical & horizontal
maximum input power 100 watt
impedance 50 î©
lightning protection dc grounded
mechanical
connector sma male or customization
antenna dimension 200200100 mm
weight 1.4 kg
radome material uv protected abs
mounting mast diameter 4060 mm
operating temperature -40â° c to +65â° c
rated wind velocity 216 kmh.
