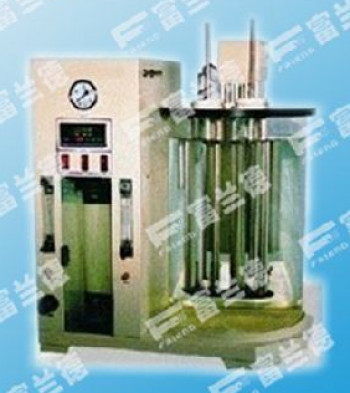

Anti-ammonia Performance Analyzer

fdh-1201 anti-ammonia turbine oil anti-ammonia performance analyzer

scope

anti-ammonia turbine oil performance anti-ammonia analyzer applicable standards: sh / t0302

anti-ammonia turbine oil performance anti-ammonia analyzer for the determination of anti-ammonia type anti-ammonia turbine oil performance. to sample a certain amount of ammonia gas was continuously passed through 12h, then allowed to stand for 12h, shake the sample, visual or without sediment precipitation.

features

1, a gas absorption bottle φ65 × 400mm, the volume of 1000mm;

2, penetration of the foam head 3000 ~ 6000ml / min, pore diameter less than 80 microns;

3, precision regulator valve to adjust the air flow 115ml / min ± 2ml / min;

4, stainless steel heater;

5, glass steel thermostatic bath ð¤300 × 500mm;

6, drying tube with calcium oxide;

7, microcomputer temperature controller, digital display, accuracy ± 1 â�� pt100 sensor;

8, digital timer, record test time;

technical parameters

1, applicable standards: sh / t 0302

2, timing: digital timer

3, heating: electric heating tube

4, flow control: precision flow meter

5, temperature control: digital pid temperature controller

6, the whole power: 2.5kw

7, temperature range: room temperature ~ 65 �

8, temperature control accuracy: ± 0.1 â��

9, power supply: ac220v 50hz
