Anti-Icing System Flow Bench

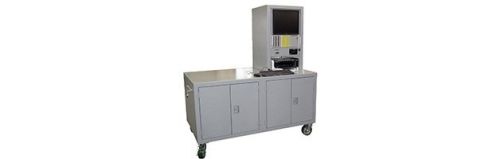

The flow bench is designed to measure air flow delivered to aircraft wing leading edges. 110 PSIG air enters on the right side of the test bench, passes through a coriolis mass flowmeter, and is delivered to the test article at 5-45 PSIG (left side). Several pressure sensors are available on the left side for pressure measurement. A console tower contains the computer, monitor and printer. The left side of the bench is available as a work surface.
