Contact SupplierOur Anti Static Raised Floor System Without Edge Trim encompasses uniqueness and appeal in the best way possible. The system is loaded with a wealth of benefits such as durability, cost efficiency, strong bearing capacity, etc. We are emerging as the eminent Manufacturer, Exporter, and Supplier of Anti Static Raised Floor System Without Edge Trim from China.

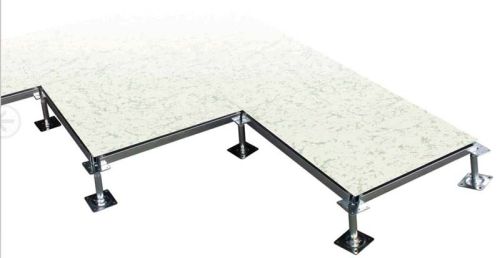

Product Brief : Steel raised floor without edge trim choose the superior steel sheet with standard thickness. After stamping and soldering to reshape, fill the high-intensive cements in the panel to make the corner of steel raised floor hard and strengthen the loading ability of edge, enough flatness and decoration. Panel without edge trim, it leaves very tiny seam during floor installation as the panel is without edge trim. The panel can be applied to high-computer room and place where requirement on antistatic or many wires. Steel raised floor without edge trim choose the superior steel sheet with standard thickness. After stamping and soldering to reshape, fill the high-intensive cements in the panel to make the corner of steel raised floor hard and strengthen the loading ability of edge, enough flatness and decoration. Cementitious Inï¬ï¿½ll Steel Raised Access Floor System(Finished Type) Introduction of Products Full steel structure, high-quality cement in ï¬ï¿½lled; Top finish tile could be HPL, PVC, ceramics and granite; The Advantages of Cement-inï¬ï¿½lled Steel Raised Floor Concentrated load XL Holding Group patent design, owe to wider edge with rib, strengthening rib and salient point structure, improve 10-20% loading ability of each floor. Edge load The edge load is the key data which can inspect the quality of the raised floor. XL second wide-edge steel raised floor with strengthening rib and salient point structure, has conquered the technical difficulties, make the edge load higher than the center load to solve the edge warping caused by uneven load effectively. Appearance and size Steel raised floor of XL Holding Group has the patent design wide-edge steel raised floor with strengthening rib and salient point structure, reshaping many times and high flatness which is less than 0.4mm and be superior to similar factories 10-20%.
International Type | Size (mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling load (N) | |||
LB | N | KG | 10 times | 10000 times | |||||
FS662 | 600x600x35 | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | 600x600x35 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x35 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x35 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x35 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x35 | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
