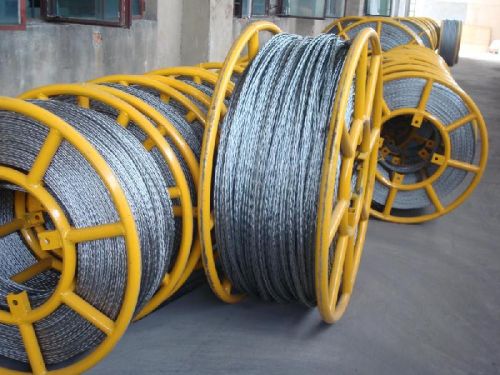

Anti-twisting Braided Wire Rope

Features: Square or hexagon Anti-twisting steel wire ropes,also called  pilot wire, pilot rope, Anti-twisting Braided Wire Rope, High Strength Pilot Wire Rope or Anti-twisting Pilot Wire,which is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be released each other whether it receives a force or not. The moment of twisting is naught for the wire rope.  Applications: The special non-rotating braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS, 500kv traction rope, etc. Structural forms for wire ropes (in cross section) 1 Four-sided eight strands 2 Four-sided twelve strands 3 Six-sided twelve strands Remarks: All kinds of non-rotating steel wire rope can be made according to the customers` requirements. Product No Model Strand Structure Nominal Dia.(mm) Strand Dia.(mm) Nominal Tensile Strength (Mpa) Strand Breaking Force(KN) Steel Rope Referenced Weight (kgkm) 1001 GS9-12*19W           Six-Sided Twelve Strands 9 2.0 1960 67 299 1002 GS11-12*19W 11 2.5 1960 87 434 1003 GS13-12*19W 13 3.0 1960 125 632 1004 GS16-12*19W 15 3.5 2000 168 862 1005 GS18-12*19W 18 4.0 1960 205 1098 1006 GS20-12*25Fi 20 4.2-4.5 1960 255 1292 1007 GS20-12*29Fi 20 4.2-4.5 1960 262 1302 1008 GS22-12*25Fi 22 4.8 1960 309 1558 1009 GS22-12*29Fi 22 4.8 1960 34
