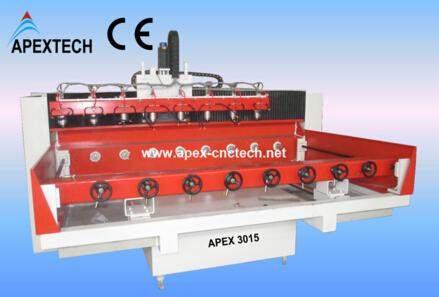

Apex C3015sr-8 CNC Router, Brand Name : APEXTECH

we are offering Apex C3015sr-8 Cnc Router.
Parameter
All of these models can be customized according to customer requirements.
With Certification: CE, ISO9001
NO.
Description
Parameter
1
X,Y,Z working area
3000*1500*200mm
2
Drive and motor
Stepperservo model
3
Spindle
2.2kw watercooling spindle
4
Inverter
Fuling frequency inverter.
5
Control system
NCstudio Mach3DSP controller
6
X, Y, Z Travelling Positioning Accuracy
±0.05300mm
7
X, Y, Z Travelling Repositioning Accuracy
±0.05mm
8
Z axis structure
Taiwan TBI Ballscrew, Hiwin square rails on Z axis
9
X Y axis structure
Rack and pinion, Hiwin square rails on X, Y axis
10
Max Rapid Travel Rate
30,000mmmin
11
Max working speed
18,000mmmin
12
Working voltage
AC220V380V, three phase
13
Command languages
G code
14
Running Environment Temperature
0 degree - 45 degree
15
Software
Type3 English version; Artcam English version
16
Net weight
1800KGS;
17
Gross weight
2000KGS;
18
Relative Humidity
30% - 75%
19
Guarantee
One year from the date of commission
20 Rotary device 8 rotary device for cylinderical material
21
Optional Accessories
①Mist-cooling system
②Dust collector Dust hoods
