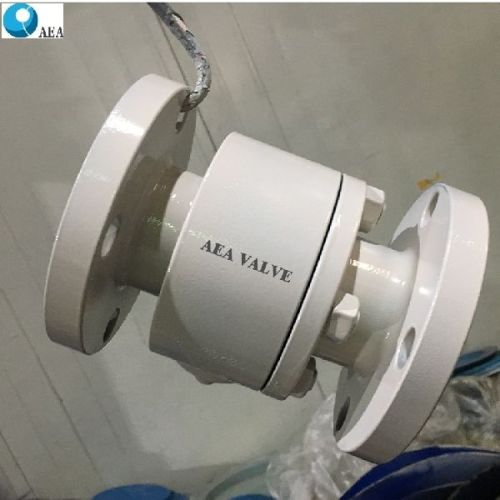

API 6D BS5351 Cast Steel Split Body Side Entry Reduced Bore Peek Seat Floating Ball Valve

Get Latest Price

MOQ1 Set(s)
MaterialCarbon Steel Or Stainless Steel
Port SizeDN20-DN150
PowerManual, Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever
PressureANSI 150-2500 LBS
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

WENZHOU AEA VALVE CO.LTD

WENZHOU

View Number

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialCarbon Steel Or Stainless Steel
PowerManual, Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever
PressureANSI 150-2500 LBS
Structure2 PC/3 PC, Side Entry, Floating Ball Valve
MediaFor Chemical , Pharmaceutical , General Industry , Oil & Gas , On/Off Shore , Petrochemical Industri
Port SizeDN20-DN150
Unit Price5-500 dollars/set

AEA Forged steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196~ 500 Degree) . It can substitute the small size trunnion mounted ball valves to save cost.
Product Range
-Valve size: NPS 12 ~ 8 (DN15-DN200)
-Pressure:ANSI Class 150~2500(PN16-PN420)
-Temperature: -196~ 500 Degree
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
End Connection :RF, RTJ,BW, SW, NPT
Technical Specifications
-Design: ASME 16.34BS 5351API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598API 6D BS 6755
-Special: NACE MR-01-75
Design Features
-Full port or reduce port
- Fire Safe Design
-Blowout-proof stem
- Anti-Static Device
-Low emission control
-Optional locking device
-ISO 5211 top flange
