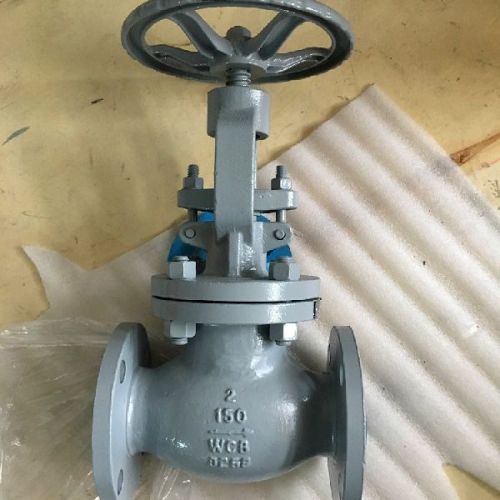

API600/BS1873 Cast Steel Bolted Bonnet Flanged End Globe Valve

AEA Globe valves are used for throttling and frequent operation. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance. The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's.
Size
NPS 2-36 inches
Pressure Rating
Class 150~1500
Design & Manufacturing Standard:BS 1873,ASME B16.34
Face to Face:ASME B16.10
Flanged Dimension:ASME B16.5,ASME B16.47,BSEN 1092
End Connection:BSEN 558,ASME B16.5,BSEN 1092
Test and Inspection:ISO 5208,BS 6755
Structure Type:Straight type,Angle type,Throttle type
Operation Method:Manual,Electric Actuator,Pneumatic Actuator
