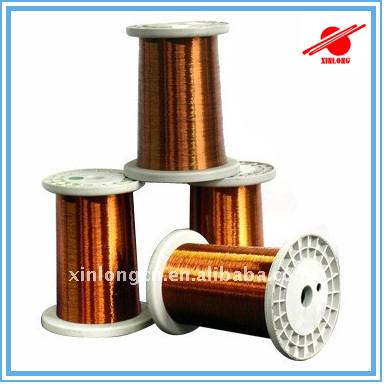

Approved Enameled Copper Clad Aluminum Wire

High Quality ISO Approved Enameled Copper Clad Aluminum Wire
Specifications:
Size: 0.12mm-2.00mm
Class: 130 155 180 200 220
Coating material: polyurethane, polyester, polyesterimide, polyamide-imide, polyimide
Film coating thickness: Grade 1, 2, 3 (single, heavy, triple build)
Standard: GB IEC JIS NEMA (or as per your request)
Certification: passed UL, REACH, ROHS, ISO
Others: can offer OEM service, customized size and packaging
Performance Features:
Enameled copper clad aluminum wire has good performance at electrical conductivity but is much lighter than copper wire ( just 40% of copper enameled wire, and the length in each unit weight can reach 2.5-2.7 times than that of copper enameled wire). Also, it has advantages at heat shock and cut through.
Main Application:
1. Used for winding coil that demands light weight, high conductivity and good heat dissipation, especially for the high frequency signal transmission winding.
2. High frequency transformer, common transformer, electric induction coil.
3. Motor that needs higher environmental requirements such as household electrical appliances, all kinds of micro motors, compressors and so on.
