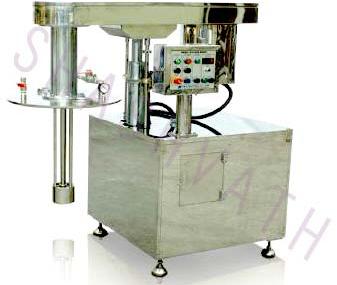

Homo Cum Vacuum Mixer, Voltage : 220V/380V/440V

The Homo Cum Vacuum Mixer is manufactured and supplied by us from Thane, Maharashtra. This vacuum mixer that is made of high grade SS 316, SS 304, SS 316L, is more durable and long lasting than its counterparts made at other factories. Shashvath Industries make compact Homo cum vacuum mixers fitted with pump motors of 2 HP capacities, which ensure homogenous blends. Features include :

• Mixing head moves up without much drag when a gel transfer tank needs to be moved into position
• Does not take up floor space

Details :

• Material : SS 316,SS 304 ,SS 316L

• Hydraulic lifting type

• Dimension : 1,710(L) x 1,000(W) x 1,430(H)/2,130(Up)

• Weight : Approximately 520 Kg

• Power consumption : Approximately 9Kw

• Voltage : 220V/380V/440V

• Frequency : 50Hz/60Hz

• Motor : 3.7 Kw (5HP)

• Maximum speed : 3000 rpm

• Dimension(Vacuum) : ø680(diameter) x 750 (H)

• Vacuum pump motor : 2HP

Features & Benefits

• A specifically designed impeller is installed at the bottom of the drive shaft and inside a circular cowling .
• Maximum impeller mixing speed of 3500 rpm.
• The machine is designed to be floor anchored and wall mounted.
• Using a compressed air driven cylinder.
• Insures a homogenous blend
• Allows dispersing, mixing, homogenizing and emulsifying while vacuum removes air within product.
• Takes up very little floor space.
• The mixing head moves effort lessly up and down to the desired position when a gel transfer tank is moved into position.
