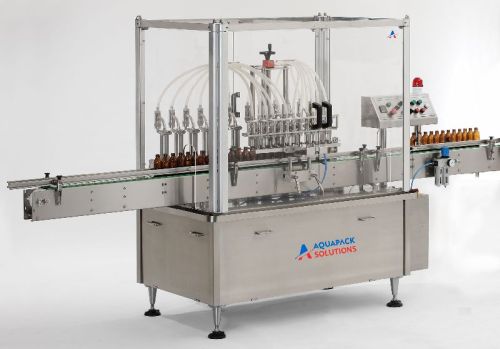

Stainless Steel Mechanical Manual/Semi Auto/Automatic Polished Automatic Liquid Filling Machine, For Bottle Water

₹ 2.50 Lakh - ₹ 77.50 Lakh / No.

MaterialStainless Steel
Automatic GradeManual/Semi Auto/Automatic
FinishingPolished
Driven TypeMechanical
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Total Carbohydrate1 Year
Corrosion ResistanceYes
Machine StructureHorizontal
Filling Valve HeadMulti-Headed
ThicknessNot applicable to the performance
Rated CurrentAs per machine model
Frequency50Hz
HardnessNot applicable
Accuracy1% plus or minus
After-Sales Service ProvidedWithin domestic market
Air PressureNot applicable
Working CapacityNot applicable
Filling Range30ml to 5 Ltrs.
Load Speed40 Bottle per minute up-to 300 Bottle per minute for 100ml(Depends on liquid volume and bottle shape
FinishingPolished
Machine Weight100-500 Kg
Packaging TypeWooden Box
PressureMedium Pressure
Power0.75kw up to 10kw
UsageBottle Water, Soft Drink, Juice, Pharma liquid oral
SpecialitiesHigh Performance
Dimension (LxWxH)Depends on machine size
Number Of FlowerPiston Filling Machine
Brand NameAquaPack
MaterialStainless Steel
ShapeDepends on machine size
CertificationcGMP Compliance
Country of OriginAs per requirement
ConditionNew
Automatic GradeManual/Semi Auto/Automatic
Driven TypeMechanical
PhaseSingle phase/three phase

Machine works on volumetric principle & is designed to fill various types of liquid in different type of containers. The machines are available in 4 / 6 / 8 heads model for various shapes, sizes, different fill sizes and output. The Machines are suitable to fill liquid from 5ml to 1000ml.
Machines are precise in filling, high quality and are built to last long.

Robust design
User friendly
No bottle no fill
Diving Nozzle to avoid foaming
Drip free nozzle with suck back arrangement
Fill ranges can be Presetted for quick changeover
Less moving parts, hence less maintenance
All liquid contact parts are made in SS316
All covers, conveyors are made in SS304
Speed Variation AC VFD

Technical Specification:

Model	APF -80 S	APF – 120 S	APF – 150 S
No. of Filling Heads	4	8	12
Output	80 BPM	120 BPM	150 BPM
Bottle Diameter
Bottle Diameter	Round Shape: Dia. 25 mm to 110 mm Height: 50 m to 275 mm Flat / Square Shape: Length: 15 mm to 100 mm Width: 10 mm to 50 mm Height: 50 mm to 240 mm
Fill Accuracy	± 1% (For maximum capacity of Filling Syringe)
Direction	Left to Right (Direction of bottle movement)
Electrical Load Main Motor Conveyor Motor	For APF – 80 S, 120 S and 150 S models 1 HP/ 2HP, 415 V AC, 3 phase with neutral 0.5 Hp , 415 V AC, 3 phase with neutral
Air Consumption	1 CFM at 5 Bar, dry air
Conveyor	MOC : SS 304 Slat Width: 82.5 mm Length: 2450 mm Working Height: 850 mm ± 50 mm
