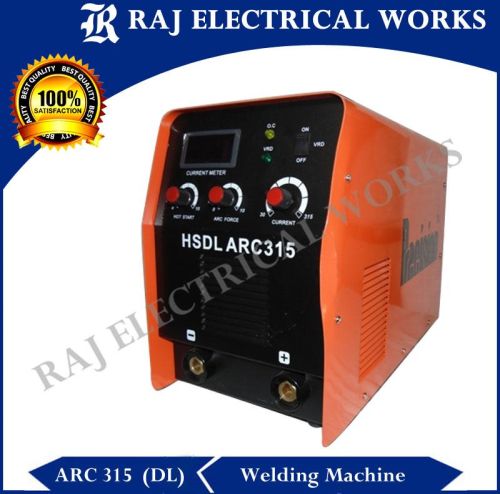

ARC 315 Dl Welding Machine

Hsdl arc315 mma machine have been designed with latest igbt inverter technology using quality igbt single transistor these machine arc of rugged & tough constriction to withstand heavy industrial use & have faster dynamic response with strong welding output current.
Welding methods: it is a manual arc welding machine.
Additional features:
i) three preventions: moisturedamp proof, dust proof and anti wind erosion designed to improve the reliability of electronic components within the welding machine under harsh environment
ii) stable performance with the function of voltage automatic compensation.
iii) the machine has thrust compensation and adjustable thermal arc function. It has also had digital display of the welding current.
Iv) vrd anti-shock features ensure no load voltage is retained at 9v-15v to provide protection against electric shock.
V) it has anti-pausing welding features which prevents the welding rod from sticking to the working piece and easy to operate.
Vi) emc electro-magnetic compatibility functions with powerful grid filtering ability to reduce power supply contamination.
Vii) internal circuits and components are well-protected by excellent anti-interference design to secure stability and reliability.
Parameter - 3 phase ac
input power voltage (ac) - 415v+10%
input frequency (hz) - 5060
rated input current (a) - 24.2
non-load voltage (v) - 69
output current range (a) - 30-315
rated output voltage (vdc) - 32.6
arc force range (a) - 0-100
rated duty cycle - 60
efficiency (%) - 85
power factor - 0.93
insulation class - f
no-load loss (w) - 80
protection class - ip21
size of the machine (mm) - 17.5
size of the machine (mm) - 475x232x392
