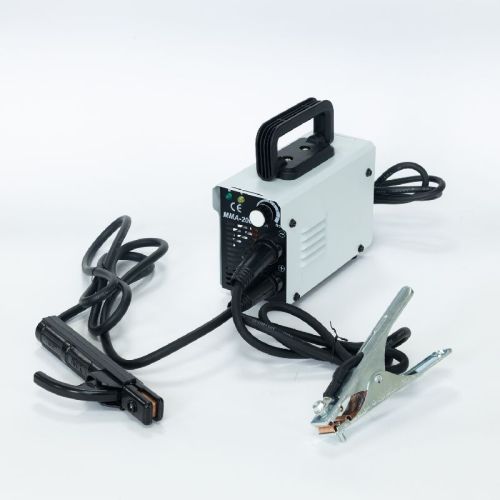

    Copper ARC Welder, Brand Name : Wincoo

    ₹ 2,002 - ₹ 3,822 / Piece
    Get Latest Price
    • MaterialCopper
    • FinishingCopper
    • CertificationCE Certified
    • Dimensions (LXWXH)Copper
    • Supply TypeManufacturer, Exporter, Supplier, Trader
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 3 Years
    • building Nature of Business Exporter
    • Year of Establishment 2015

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Welding TypeARC Welder
    • PhaseSingle Phase
    • MaterialCopper
    • Corrosion ResistanceCopper
    • Machine StructureCopper
    • Rated CurrentCopper
    • Rated PowerCopper
    • Total CarbohydrateCopper
    • Operating TypeCopper
    • AvailabilityCopper
    • FinishingCopper
    • PressureCopper
    • ApplicationCopper
    • Dimensions (LXWXH)Copper
    • SpecialitiesCopper
    • ThicknessCopper
    • HeightCopper
    • Duty Cycle (%)80
    • After-Sales Service ProvidedYes
    • Country of OriginChina
    • Number Of FlowerSpot Heavy Welding Machinery
    • Brand NameWincoo
    • CertificationCE Certified
    • Packaging TypeCustomized
    • ConditionNew
    • Keywordinverter welding machine
    • Rated Duty Cycle @40°C80%
    • Key Selling PointsEasy to Operate
    • Rated Output Current200A
    • Rated Input Voltage230V
    • Pulse Frequency50/60Hz
    • Max. Load Power Capacity7KVA
    • Welding Current/Voltage Range20-200A
    • Motor TypeDC

    High Power Mini Welder MIG/MMA/TIG/Arc Igbt Inverter 200A Ac Dc Copper Wire Welding Machine For Weld

    WINCOO ENGINEERING CO.,LTD

    We are engaged in providing inverter welding machine, such as MMA/SAMW welding machine, ARC welder, TIG/MMA2 in 1 welder , MMA,MIG,MAG,3 in 1 machine, Inverter plasma cutter welding machine, air compressor built-inside plasma cutter.Most of our products are got CCC, CE, EMC, SAA and UL, RoHS certificate

    Product name MMA200
    Rated input voltage(V) AC230V+10% 50/60Hz
    Rated input power(KVA) 7
    Rated input current(A) 24.3
    Welding current range(A) 20-200A
    No-load voltage(V) 65
    Rated duty cycle 60%
    Efficiency(%) 85
    Power factor 0.9
    Protection class H
    Size(mm) 37*24*25
    Weight(Kg) 7
    All models of this type machine
    Model MMA120 MMA140 MMA160 MMA180 MMA200 MMA250 MMA300
    Rated input voltage(V) AC230V+10% 50/60Hz
    Rated input power (KVA) 3.8 4.5 5.3 6.1 7 9.4 12.1
    Rated input current(A) 12.9 15.2 18 20.7 24.3 32.8 41.8
    Welding current range (A) 20-120A 20-140A 20-160A 20-180A 20-200A 20-250A 20-300A
    No-load voltage(V) 65 65 65 65 65 65 65
    Rated duty cycle 60% 60% 60% 60% 60% 60% 60%
    Efficiency(%) 85 85 85 85 85 85 85
    Power factor 0.9 0.9 0.9 0.9 0.9 0.9 0.9
    Protection class H H H H H H H
    Size(mm) 37*24*25 37*24*25 37*24*25 37*24*25 37*24*25 37*24*25 37*24*25
    Weight(Kg) 4.6 5.2 5.5 5.8 7 7.5 8
    Model MMA250 MMA330 MMA315 MMA350 MMA400 MMA500 MMA630
    Rated input voltage(V) AC230V+10% 50/60Hz
    Rated input power (KVA) 9.4 12.1 13.9 15.8 18.4 25 35
    Rated input power(A) 15 19.2 22 25 29 38.5 55
    Welding current range (A) 20-250A 20-300A 20-315A 20-350A 20-400A 20-500A 20-630A
    No-load voltage(V) 70 70 70 70 70 70 70
    Rated duty cycle 80% 80% 80% 80% 80% 80% 80%
    Efficiency(%) 85 85 85 85 85 85 85
    Power factor 0.9 0.9 0.9 0.9 0.9 0.9 0.9
    Protection class IP21S IP21S IP21S IP21S IP21S IP21S IP21S
    Insulation class H H H H H H H
    Size(mm) 46*26*34 46*26*34 54*28*39 54*28*39 58*30*45 58*30*45 65*34*56
    Weight(Kg) 13.5 14 19 22 28 32 43
    Company manufacturing center   Showroom Welding station Testing Assembling Loading testing Loading test machine Aging test High and Low Temperature Tester and multi test center Finished product Packing Our company is located in Nanjing who was the ancient capital city of six different dynasties before. Now it is well-known cultural and tourist city in China. It needs only around 1 hour from Shanghai by High speed train. We have three share joint factories located in Taizhou and Linyi. We supply different kinds of inverter welding machine such as MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, Plasm cutting power source approved by CSA, CCC, CE and other certificates. 1.These welders can be from 100 Ampere to 1000 Ampere, from home DIY use to Industry use, from single function welding process to multifunction welding process, with reliable quality and favorable price. We deliver consistent quality from our ISO9001 certified manufacturing facilities for each client, each order. 2.In terms of productivity, taking an order of 10 thousand pieces of welders for example, we can finish manufacturing in 3 days. 3.We accept small orders, we cherish and appreciate any of your inquires. Each machine before delivery will be tested at least three times to ensure the quality. 4.We can provide 12 months warranty for whole machine, 18 months for the main board, full life technical support and after sale service. 5.We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales. WINCOO'S Culture to client is:To provide more favorable and reliable welders is WINCOO's unremitting pursuit of the goal.Win based on Cooperation is our business philosophy,Positive and Active response is our attitude,Consideration on behalf of client is our ethic and responsibility,Support client to succeed is our purpose,Mutual benefit is our win-cooperation expectation.To Wincoo ourselves is:Integrity, generosity, intelligence and inclusiveness are our characters. Foresight and pragmatism are our qualities. Loyalty, responsibility and ambition are our basic requirements. The secret of development is to beat expectations.Success is determined by these three factors: people, people and people.The absence of ethics negates everything. Integrity is essence. Communicate openly and frankly.United we triumph. Passionately begun, halfway done. Growth is a process of overcoming adversities.Be curious. Be grateful.Execution without any excuses. We sincerely expect your inquiry, visit and inspection, and deeply hope to be your long time reliable partner in China. 1. Who are we? We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.We provide MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, air compressor built-in Plasma cutting power source. 2. What do we manufacturing? We're mainly producing Inverter Welding Machine of MMA welders from 100 Amp to 500Amp (DIY or Industry purpose),TIG welders from 150Amp to 300Amp, (DC or AC/DC),MIG/MAG welders from 120Amp to 500A, (Gas or Gasless),Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike). 3. How can we guarantee the quality? We can provide 12 months warranty for whole machine, 18 months for the main board, f. Meanwhile, we offer whole life on-line technical supports for operating guide and troubleshooting. 4. How to place order? I haven't done business with you guys before,how can i trust your company? We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.You may place order online through alibaba, it is safe for your money. 5, How to inspect? Weclome your third party or SGS or your friend to come an inspect before delivery. 5. Why choose us? *OEM/ODM is available. *Small order is acceptable, even 1 piece; *Quick Delivery is available in 15 days; *12 months machine warranty, 18 month main borad warranty, whole life technical support and after sale service; *Has strong will of developing local agent or distribitors with your own brand; *Provide online demonstration before order, online video during production and packing, video support after sales; *Provide free cover design service(Your own brand).
