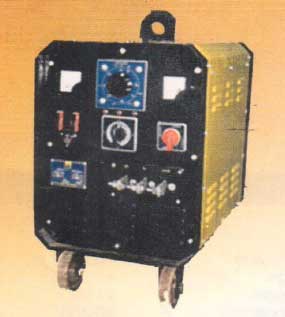

ARC Welding Transformer

We are the prime ARC Welding Transformer Manufacturer, Exporter, and Supplier in Dubai. The ARC Welding Transformer is a dynamic 300/400& 600 single/multi operator with unique current control (stepless) with remote current control facility. A special design of ARC Welding Transformer provides for excellent dynamic characteristics and thus ensures smooth & optimum metal transfer. Easeweld Dynamic series AC ARC Welding Transformer is naturally/forced air cooled & oil cooled. 3 phase/single phase 400/400 volts AC, welding machines for heavy duty manual metal arc welding also be used as power sources for TIG welding of aluminum magnesium & their alloys.

Known For

• Ideal for aluminium argon arc welding
• Stepless smooth & infinitely variable current regulation even form remote during welding in progress
• Easy portability
• Class 'h' insulation
• Smooth and excellent arc ensure minimum spatter higher metal recovery
• Unique for site construction works
• Higher OCV enables use of longer welding cables without problems welding lead resistance drop
• Low power consumption due to high quality materials utilized
• Negligible maintenance due to no moving parts
• No humming/sound

Extra Options The following can be supplied as optional :

• Power factor correction capacitors
• Ammeter & voltmeter
• Set of standard welding accessories

Custom Built Machine The Specifications given below are for standard Dynamic series A.C. Arc welders. Special machines of non-standard input voltage requirements, welding current ranges or open circuit voltage ranges can be supplied against specific orders.

Technical Specifications

Type	Unit	Dynamic 300	Dynamic 400	Dynamic 600
Primary voltage	400/440 Vac, Phase 3, 50 hz
Rating Continuous	KVA	16-Dec	16/21.6	24.32
Rating @ 60% duty cycle	KVA	16/21	20/27	30/40.5
Open circuit voltage	V	66/90	66/90	66/90
Operating Arc Voltage	V	22-32	22-36	23-39
Welding Current Range	A	40-300	50-400	60-600
Max. Cont Hard welding	-	-	-	-
Current @ 60% duty cycle	A	225	300	450
Max, Continue. Automatic		-	-	-
Welding Current @ 100%		-	-	-
Duty Cycle	A	175	230	360
Max. Intermittent welding		-	-	-
Current	A	300	400	600
Class of Insulation	Class of Insulation
Recommended Fuse (Delayed Action)	A	55	80	120
Cooling		NAC/FAC/OC	FAC/OC	FAC/OC
Approx dimensions		-	-	-
LxWxH	mm	585, 430, 75	585, 485, 750	635, 535, 750
Weight Approx	kg	155	195	225

Note : In View of Continuous development Specifications subject to change without prior notice
