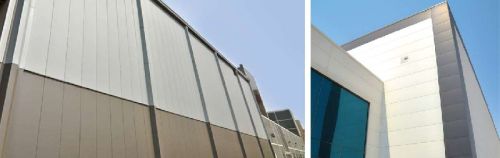

The HFW is an architectural wall panel, with a hidden-fix joint system. This system conceals the fasteners used to install the panels, providing a smooth, aesthetic look to the building’s façade. It can be installed horizontally or vertically on any building with positive internal temperatures.
The top choice of architects, HFW panels can easily be cut and modified to satisfy different needs without sacrificing the beauty of the façade.
2Based on 0.70mm thick outer and 0.50mm thick inner facers
3As per foam laboratory values
*Consult factory for improved values with different foam systems
Â
The core of EIP panels is an environmentally sustainable rigid PUR/PIR insulation foam.
available in,
having properties as,
The blowing agent used in EIP panels is environmentally friendly pentane gas with Zero Ozone Depletion Potential (ODP) and Low Global Warming Potential (GWP). It does not contain CFC or HCFC.
1 As per foam supplier's laboratory values.
| t: Core Thickness (mm) | 50 | 75 | 100 |
|---|---|---|---|
| Weight - Steel (kg/m2)1 | 10.30 | 11.60 | 12.60 |
| Weight - Aluminum (kg/m2)2 | 5.50 | 6.60 | 7.60 |
| U value - PIR (W/m2K)3 | 0.42 | 0.28 | 0.21 |
| U value - PUR (W/m2K)3 | 0.46 | 0.30 | 0.23 |
