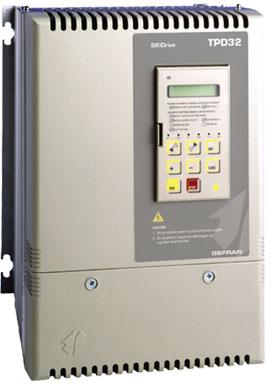

Armature DC Converters

Digital converters, from 20A to 3300A
* 3ph 230Vac…500Vac, 50/60Hz; 3ph 690Vac, 50/60Hz
* Rated currents: from 20A to 3300A (biquadrant and tetraquadrant)
* IP20 (IP00 for currents over the 1050A)
* Marks: CE, UL, cUL
500Vac Line
. 3ph supply: 230Vac…500Vac 50/60Hz
. biquadrant (..-2B): from 20A up to 3300A
. tetraquadrant (..-4B): from 20A up to 3300A

The SIEIDrive – TPD32 series of digital converters is available in a wide range of motor power ratings and power supply types for solutions using both two quadrant and four quadrant operation.
Designed to minimise user system requirements, the TPD32 offers a range of functions and dedicated application packages to cover the most complex requirements of modern industrial automation systemsFunctions:
Quick start up
Autotuning of the speed and current regulators
5 Independent programmable Multi-ramps
Programmable Linear and “S”shaped ramps
7 Programmable Multispeeds
Independent regulation of the Min/Max speed for each direction sense of rotation
Current limitation in accordance with the speed
Adaptive gains of the speed regulator
Independent management of the integral gain at zero speed
Programmable overload control
Jog function
Motorpotentiometer function
I2t motor protection
PID function block
Servodiameter control function
“Speed Draw” function
“Autocapture” function (Flying restart)
“Droop” function
Options:
Programming keypad KB
I/O expansion card TBO-32
Profibus interface SBI-PDP-32
DeviceNet interface SBI-DN
CANopen interface SBI-COP
