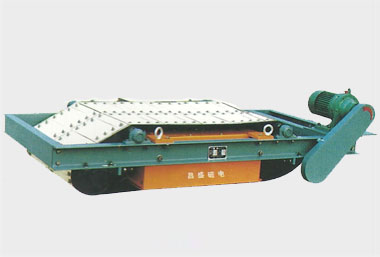

Armoured Self-cleaning Permanent Magnet Separators

We are offering permanent magnet separators.
Introduction:
series rcyg auto cleaning super permanent magnetic precise iron remover is a product involving high technology. With a unique mechanical structure, and high-gradient, high-intensity magnetic fields, this product is especially appropriate to remove iron from the materials in industries such as coal, refractories, ceramics, chemicals, cement, building materials, food and so on. It is conducive to the product purification and protection of equipment's normal operation. In particular, it can clear some of the spherical iron, small iron pieces, such as detonators, small nuts, small screws, small balls and so on, which is difficult for the average magnetic iron remover. This product is the best selection in occasions with high requirement of iron remover.
it adds armoured stainless steel on the base of rcyd series to prevent belt damage from the spiculate ferromagnetic materials. It works economically and specially fits to eliminate iron from metallurgy dreg,dreg workshop,foundry workshop and ironworks.
Specifications
1.permanent magnetic iron remover
2.strong magnetic intensity
3.steel armored belt
4.models can be customized
working principle:
when the materials pass the precise magnetic iron separator through the feeding pipe, the materials will be diverted by the shunt board in front, and then enter the reconstruction area, turning the iron material inside to the direction of the vertical plate, reducing the resistance on the iron from the materials. The materials carry iron to the high-field absorption zone where the iron is adsorbed, and the iron will rotate to the posterior region with the shell, then break away from the strong magnetic field relying on its gravity and centrifugal force.
