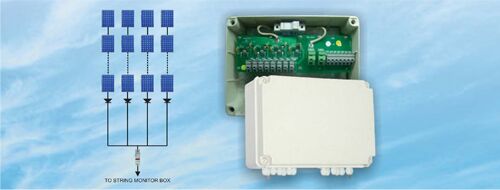

Array Junction Box

Ideal for use with all Thin film /Cd-Te type Solar panels, used to connect large numbers of low current, high voltage PV panel strings before being connected to String Monitor Box.
Available in current ranging from 1 A upto 4A per string, and from 3 upto 16 strings input, the PST string combiner can be designed for wide range of solar panels used in MW range solar installation. Housed in IP65 protection, polycarbonate boxes, the PST has specially designed diode isolation and termination arrangement. Heat Management of the entire box comes with 24 years experience in Power design of semiconductor devices. Thus it will ensure long life oftheStringCombiner Box.

• Ambient : -10°C upto 55°C
• Type of enclosure : IP65 type 100% Polycarbonate enclosure
• Peak Voltage : upto 1000V DC
• String current : 1A upto 4A
• Total output capacity : 20A maximum
• Number of strings : 3 to 16
• Type of protections : 1000V DC fuse with base
• Optional : Fuse trip indication
• Terminals / Cables : 4mm2 to 16mm2 as per requirement
• Expected life : 25 years
• Top cover : Opaque/Transparent
