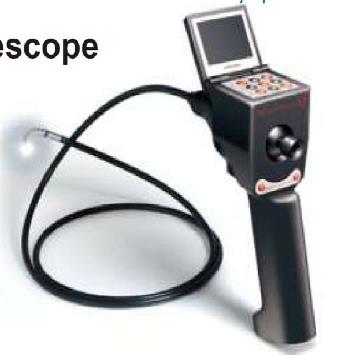

ARTICULATING VIDEO ENDOSCOPE

This 4 Way Articulation is the most portable easiest to use and fullfeatured video endoscope on the market.It provides precise control of the articulating tipthrough the use of a thumb – activated joystick. Thisjoystick responds to the slightest movement of yourthumb and allows full movement of the camera tip in alldirections.Combined with a trigger-activated image capture buttonand thumb-activated video recording button, the joystickallows easy one handed control of all key functionsThis is an all-in-one system that combines an articulatingvideo borescope with an on-board imaging system. As youconduct an inspection still image can be captured withthe click of your index finger and a button next to thejoystick allows you to control video recording.The Control panel allows you to review stored images andvideo on the built-in 2.4”LCD display. As an option, youcan vide or record image and video on a laptop via theUSB port or plug-in a conventional monitor.The rigid end of the bending section is only 13mm long.This short rigid section aids in navigating the insertiontube through curved or complicated structures.The 4 LEDs that illuminate the camera tip can be easilyadjusted to one of four different brightness levels, orthey can be turned off. This feature prevents light washout and helps to always provide a clear image.This is fully portable and weighs only 400Gm, including therequired four AA batteries. Run time is typically 1.5 hoursbefore the batteries need to be replaced. Because of theshelf disposable batteries are used, there is no risk ofdown time waiting for a recharging cycleJoystick- Controlled,360 º ArticulationA Field of View of 4mmto infinitySuper High-IntensityLED IlluminationHOPE SECURITY EQUIPMENTS PVT. LTD. :5 0 2 , Ri sh ab h Co rp or at e T ower , Op p . Kar ka rd ooma Me t r o St at i on ,16 , Commu n it y Ce n t r e, K ar ka rd ooma, N ew De l h i -1 1 0 0 92 ( In d i a )p. +91 11 22374843, 43014676 f.+91 11 43014677, 43014676 e.info@hopesecurity.orgwww.hopesecurity.orgFeatures & SpecificationInsertion TubeOuter Diameter 6.9mmLength (Meter/ Inch) 1.5mExterior Stainless Steel BraidWaterproof Insertion Tube and TipChemical Compatibility Machine Oil, Heating Oil, Engine Oil, Concentrated Saltwater,Diesel FuelOpticsField of View 72o / 54 oAperture F 6.0Depth of Field 4mm to infinityIllumination Method 4 Super High-intensity white LEDsArticulationArticulation Control Joystick with “Direct control” mechanismLCD Monitor 2.4inch Color Digital LCDStill Capture/ Record Function Still Image (No LED Flash Capturing)Input/ OutputVideo output 2.5mm stereo Mini Jack for RCA VideoStorageStorage Media Micro SD Card (Max. 2GB/ Recommended 512 MB)Still Image JPEG 640 x 480 PixelsVideo Motion JPEG (AVI file extension) 640 x 480 PixelsStorage CapacityWith IGB Micro SD CardStill Image : Max 500 Picture, Movie Recording : Approx 60Minutes (Normal Mode)/ Approx 9Hrs (Time Lapse mode)Playback FunctionStill Image Thumbnail 9-image Display / Full Screen DisplayVideo Play, PauseMenu OperationImage Adjustment Brightness, Contrast, Hue, SharpnessDelete Stored Image Time & Date SettingLanguage (USB Mass Storage) EnglishOther FeaturesOperating Temperature (insertion tube) -10 º to 50 º CPower Supply AC: 100V – 240VOperating Time Max 1.5 Hours (with 4 AA alkaline batteries)Weight Around 500gm
