Aseptic Filling Machine, Brand Name : OEM

Technology description: the aseptic filling machine mainly by the one aseptic filling heads, operating system, man-machine control system, weighing system and the work table etc. Packing bag with aluminum-plastic compound aseptic bag. The whole process in a sterile environment.

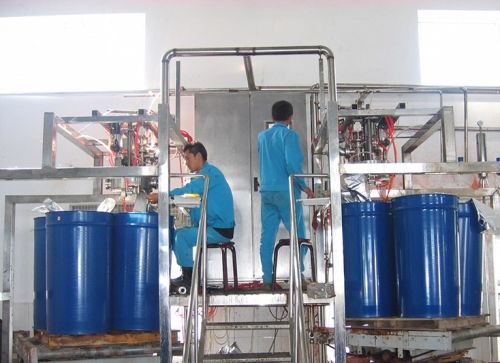

Automatic Aseptic bag filling machine
This filling machine is used for filling the fruit juice, paste, puree, pulp and other liquid into the aseptic bags for storage. The natural fruit juice or pulp can be kept in the aseptic bags for more than one year under constant temperature, and the concentrated fruit juice or paste can be kept for more than two years.
The aseptic filling machine can be connected with the Sterilizer directly; the product will be filled into the aseptic bags after fully sterilized by the sterilizer. The aseptic bags are aluminum compound multi-layer bags; it can cut off from sunlight and oxygen affection to guarantee the high quality of the products. The temperature of filling chamber can be adjusted automatically by temperature control system, the bag’s spout and filling chamber will be sterilized by steam spraying.
Main characteristics are as follows:
1,Equipped with manual and automatic two sets of control systems, electrical configuration using SIEMENS, Schneider and so on. Weighing metering controller control, deviation is small, high efficiency.
2,Equipment material: in addition to the motor, electrical configuration, soft connection, the main parts are made of high quality stainless steel 304.
3,Filling range: 2KG~220KG.
4,Power:7.5KW
5,Steam consumption: 12KG/H
6,Dimensions: 2600*2000*2500 (L * w * h)
Welcome to contact for more further details,thanks you in advance
