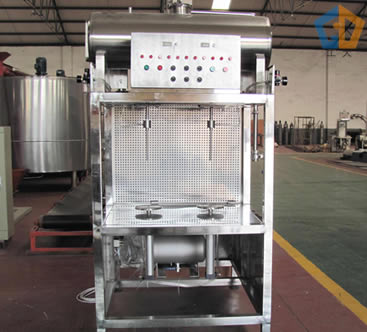

Aseptic Filling Machine

We are offering aseptic filling machine
1. the main component:
the machine invludes frame, the elevtrical control system, solenoid pilot actuated value, pneumatic componets, membrane filter fan, ultravidet lamp, systems back to components.
2. fatures:
this machine is specially designed for 5l pop cans.
the control unit adopts siemens small plc for controlling the whole process.
This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp.
The machine fills the barrel in the way of vacuum-pumping and co2 pressure preparation.
3. Main technical parameter
size of plate form: 960mm*800mm
height of plate form: 800mm
size of the machine: 1000mm*1300mm*1530mm
production capacity: 50 - 70keg per hour
pressure of the : 0.2--0.3mpa
pressure of the air: 0.6--0.7 mpa
pressure of the co2: 0.2--0.3 mpa
pressure of the cylinder: 0.3--0.5 mpa
voltage of the electricity: ac220v 50hz
