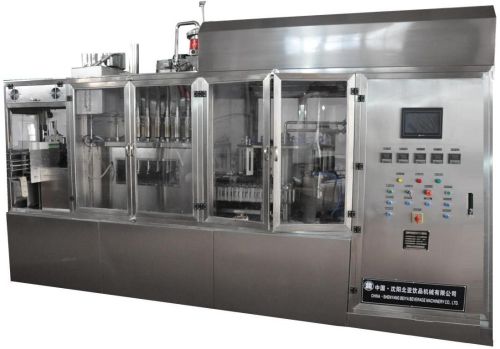

Aseptic Packaging Machine

We offer aseptic packaging machine. Work flow:
put cardboard into carton holder (manually) ultrasonic capping (optional) h2o2 spraying dyring system bottom sealing and heating filling top heating and sealing date printing finished product
the whole process is controlled by plc, and only need one person to operate.
2. Suitable for filling:
various kinds of dairy products and juice, such as milk, yogurt, cream, soy been milk, beaten egg, apple
juice, orange juice, etc.
3. Technical parameter:
capacity: 250--1000ml 1000ml-2000ml (can be filled by one machine)
output: 2200-2500 cartonshour
packing material: cardboard carton aluminum foil carton
(carton bottom size 57*57mm, 70*70mm, 95*95mm, one size for one machine)
capping: with capping (optional) cap size: φ 26-φ 36, one size for one machine
filling temperature: 2-50 degree centigrade70-90 degree centigrade
overall power: 33kw (three phases of electricity), 220v, 60hz or 380v 50hz
shelf life: for milk and other dairy product, the shelf life is 30 days at the cold temperature, for hot filling juice is one year.
Cooling water: flow volume: ≥ 40l min temperature: ≤ 30 centigrade
size: (l*w*h): 4.5m*1.6m*2.8m net weight: 3500kgs
packing size: 5*1.95*2.58m gross weight: 4000kgs
installation requirement: any smooth floor, such as cement, floor tile, plastic ground, etc.
The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.
