ASGH Cot Grinding Machine

ASGH Cot Grinding Machine

Listing ID #4148950

Get Latest Price
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world

Cot Grinding Machine : Model ASGH 200   High production cot grinding machine suitable to grind all kinds of top rollers with surface finish / accuracy as per international....
View More Details
Send Enquiry

Company Information

R. R. Enterprise
Rakhial, Ahmedabad, Gujarat
View Number
  • Member Since 16 Years
  • Nature of Business Manufacturer
  • Year of Establishment 1994

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

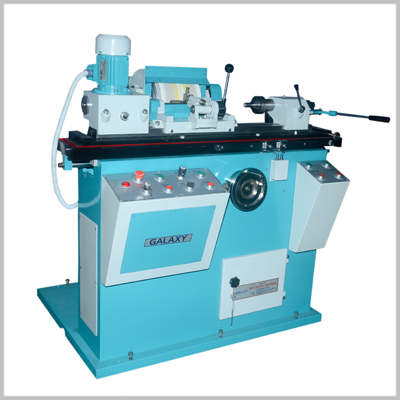

Cot Grinding Machine : Model ASGH 200



High production cot grinding machine suitable to grind all kinds of top rollers with surface finish / accuracy as per international standards.

Grinding of Ring Frame & Speed Frame top rollers are on 200 mm wide emery with centreless grinding attachment manually operated.

Draw Frame and Comber rollers are grinded between center with 25 mm emery.

Taper Grinding system is provided for Comber detaching roller.

Machine is having hydraulically operated table traverse.

High efficient dust extraction unit provided.

Designed for better grinding results and high production with very less maintenance.

Production Capacity : 250 top rollers of R/F and S/F per Hour.

Total Ele. Power Consumption – 4.5 H.P. (3.3KW)


Model ASGHY-200-AF ASGHY-200 ASGH-200
Operating system Auto Feeding Semi Automatic Manual
Production Per Hour 325-350 Arbour 275-300 Arbour 225-250 Arbour
Centreless Attachment For R/F & S/F Pneumatically Adjustable Grinding Time Hydraulically Adjustable Pressure & Grinding Time Manual
Longer Roller Like Comber/Draw Frame Etc Grinding Between Centres, Taper Grinding System Provided For Comber Detaching Roller
Grinding Accuracy & Surface Finish +- 0.01 Ra Value <0.5 umm
Lubrication System Centralise System By Manual Pump
Connected Electric Load 3.3 KW (4.5 HP) 3 Phase
Dust Extraction Provided Separately
Compressed Air Pressure 6-10 Bar
Grinding Wheel Dimensions Ring & Speed Frame : 250 O/D * 150 I/D * 200 Wide
Longer Roller : 250 O/D * 150 I/D * 25 Wide

Working Range
Min.Dia
Max.Dia
Max.Length

 Ring & Speed Frame Roller
26 MM
38 MM
190 MM Draw Frame / Comber Roller
20 MM
100 MM
500 MM
Weight Net/Gross Kgs 1200/1600 1100/1500 1100/1500 950/1350
Size of Case Machine
Dust Extraction		 160L*130W*160 cms
110L*81W*155 cms












Company Details close-icon

Arun Shuttle Industries was founded as privately owned company in 1982, as a manufacturer of non original textile spinning and weaving machinery spares, We are a progressive and professional ISO 9001 : 2008 certified company located Ahmedabad (India).
Since our Inspection in 1982, we have gradually grown from product to product and now we manufacture and supply more then 4000 different textiles. Today the journey we started with 1 manufacturing plant and 10 people have grown to 4 manufacturing plant with more then 300 people.
Inhouse Tool Room
Mass production of most textile machinery spares require precision press tools to produce press metal parts. We manufacture tools & dies within our own tool rooms.
We have one of the most well equipped tool design & tool manufacturing facilities among all textile machinery and spares manufacturer. Precision state-of-art CNC machines for milling, spark erosion, wire cut operations, fine surface grinding are in operation.
We also have separate group of engineers specialized in tool design capability for developing of press toll using contemporary software tools.
