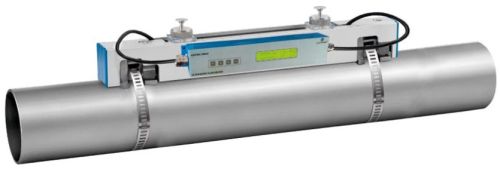

Asionic 200 Cf Clamp-On Ultrasonic Flow Meter

Description

ASIONIC™ 200 CF Clamp-On Ultrasonic Flow Meters are designed for accurate flow measurement of liquids in industrial applications. Since the sensors are clamped directly onto the outer surface of the pipe, the system eliminates all process compatibility issues associated with in-line flow meters.

The flow meter operates on Transit Time Measurement Technology, where ultrasonic signals are sent with and against the flow direction. By comparing the travel times, the system accurately calculates fluid velocity and volumetric flow rate. Sonic properties of the pipe and fluid are factored in, ensuring highly repeatable accuracy.

ASIONIC™ 200 CF is ideal for users requiring a non-intrusive, easy-to-install solution that maintains precise flow measurement for clean liquids — especially in applications where:

• In-line meters were not previously installed,

• Large pipe diameters exist, or

• Pipe materials are exotic or incompatible with in-line technologies.

The clamp-on design allows installation without stopping the flow or cutting the pipeline, making it suitable for both retrofits and new process setups.

Features

• Ultrasonic measurement using Transit Time Technology

• Easy installation — no need to cut the pipe or stop the flow

• External transducers require no periodic cleaning

• No pressure drop or energy loss

• Bi-directional flow measurement

• Suitable for a wide range of pipe diameters

• Portable or fixed installation options

• Compact and lightweight design

• Inbuilt data logging

Technical SpecificationsPerformance Characteristics

• Media: Sonically conductive liquids

• Sensing Method: Differential transit-time (direct or reflect mode)

• Viscosity: Up to 200 cP

• Turbidity: <10,000 ppm with low air bubble content

• Flow Velocity Range: –12 m/s to +12 m/s (40 ft/s)

• Accuracy*: ±2% of F.S. + 5 mm/sec
  (For velocity range 0.3 m/s to 6 or 12 m/s)

• Line Size:

  • 50 NB to 100 NB

  • 125 NB to 300 NB

  • For higher line sizes, consult factory

• Acoustic Paths: Single path

• Display: LCD

• Communication Interface: RS-485

• Data Logger: Internal data logging

Electrical Specifications

• Power Supply: 24V DC

• Outputs:

  • 4–20 mA

  • Pulse (Open Collector)

Environmental Conditions

• Ambient Temperature: –20°C to +60°C

• Ambient Humidity: 5–95% RH (non-condensing)

• Operating Temperature – Transducer:

  • Standard: –40°C to +80°C

  • Optional: –40°C to +150°C

• Operating Temperature – Electronics: –10°C to +60°C

Mechanical Specifications

• Pipe Size Compatibility: 50 NB (2”) to 300 NB (12”)

• Pipe Wall Thickness: <10 mm

• Pipe Material Compatibility: MS / SS / Cast Iron / Plastic

• Sensor Cable:

  • Encapsulated design

  • Standard length: 5 meters

• Sensor Mounting Method: “V” method

• Transmitter Mounting: Pipe-mounted / wall-mounted

• Electronic Protection: Field-mount Weatherproof IP-67

Configuration Details

• Media Type: Sonically conductive liquids

• Sensor Type: Clamp-on

• Certification: CE
