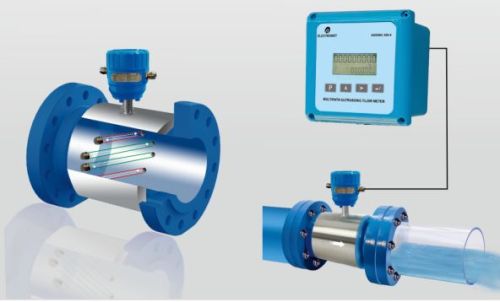

Asionic 400 4 Multipath Ultrasonic Flow Meter

Get Latest Price

MOQ10 Piece
Line Size15 NB To 1000 NB
TypeUltrasonic Flow Meter
Repeatability+0.1% Of M.V.
DisplayLCD Display - 6 Digit For Flow Rate & 8 Digit For Totalised Flow
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Electronet Equipment Pvt. Ltd.

Kondhwa, Pune, Maharashtra

4.0/5

(1)

View Number

Member Since 7 Years
Nature of Business Manufacturer
GST No. 27AABCE2486N1Z8

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

TypeUltrasonic Flow Meter
Line Size15 NB To 1000 NB
DisplayLCD Display - 6 Digit For Flow Rate & 8 Digit For Totalised Flow
Accuracy< +0.2% Of M.V.
Repeatability+0.1% Of M.V.
Power Supply230V AC/ 24V DC (+/-10%)
Data LoggingFor 10 Years (Per Day 1 Sample)
Process Pressure16 Kg/cm2 Maximum
Temperature Coefficient+0.05% Per °C
MediaSonically Conductive Liquids
Ambient ConditionsTemperature -20 To 70°C / Humidity 5 To 95% Non Condensing
Process Temperature-20°C To 85°C
Response TimeLess Than 10 Sec.
Electronic Protection ClassIP-67
Battery Life5 To 10 Years Depending On Sampling Time

Description

Electronet Series ASIONIC 400-4 Ultrasonic Flow Meters offer the flexibility to install a highly reliable flow measurement system virtually anywhere without compromising accuracy or performance. These meters are extremely easy to use, simple to install, and require no regular maintenance.

Designed for both industrial and domestic applications, they are ideal for:

Municipal and industrial water supply
Cooling tower systems
Water treatment plants

The integrated LCD display provides clear indication of flow rate and totalized flow, accessible through intuitive key selection.

Features

Full-bore ultrasonic flow meter for accurate liquid flow measurement
Transit Time sensing technology
Four-path chordal design for optimal linearity and repeatability
High accuracy: ±0.2% of measured value
Empty pipe indication and partial flow measurement
Negligible pressure drop
Optional pressure & temperature measurement
IoT-enabled device for smart monitoring
Wet calibration as per ISO 17025:2017
(NABL / ILAC Accredited Calibration Laboratory)
Suitable for clean conductive and non-conductive liquids
