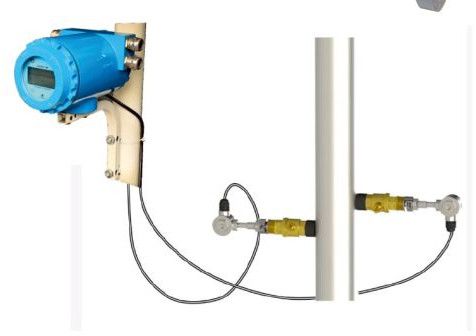

Asionic 400 Ultrasonic Flow Meter, Line Size : 15 Nb To 600 Nb

Description

Electronet Series ASIONIC®-400 Ultrasonic Flow Meters provide the flexibility to install a reliable flow measurement system virtually anywhere without compromising accuracy or performance. These flow meters are extremely easy to use, simple to install, and require no regular maintenance.

They are designed for a wide range of industrial and domestic applications, including municipal water systems, industrial water distribution, cooling towers, and water treatment processes.

The LCD display provides a clear indication of flow rate and totalized flow, accessible through key selection. In battery-powered models, the display automatically shuts off after 10 minutes to extend battery life and can be turned on again by pressing the “Enter” key.

  Features

• Ultrasonic measurement using Transit Time Technology

• Full-bore type construction

• Local indication through LCD display

• Simple and cost-effective design

• Empty pipe indication

• Automatic Meter Reading (AMR) via GSM, GPRS & RF

• Electronic Protection:

  • Field Mount Weatherproof IP-67

  • DIN Standard (IP-54)

  • Flameproof (CMRI IIA IIB Certified)

• Leak, burst, and tamper detection

• No pressure drop

  Technical SpecificationsPerformance Characteristics

• Media: Liquids

• Line Size: 15 NB to 600 NB

• Number of Paths: Single

• Electronics:

  1. Integral (Local)

  2. Remote

• Output:

  • 4–20 mA DC

  • Pulse (Open Collector)

  • Frequency (0 to 1 kHz)

• Communication: RS-485 (MODBUS RTU), GSM, GPRS, RF

• Viscosity: Up to 200 cP

• Display: LCD — 7-digit Flow Rate & 8-digit Totalized Flow

• Calibration Range: Factory Calibrated (as per requirement)

• Accuracy: < ±0.5% of M.V. + 5 mm/sec (Velocity 0.3 m/s to 6 or 12 m/s)

• Linearity: ±0.5% of M.V.

• Repeatability: ±0.2% of M.V.

• Temperature Coefficient: ±0.05% per °C

Process Conditions

• Process Temperature: –20°C to 85°C max

• Process Pressure: 16 kg/cm² max

• Material of Construction: Flow Tube — SS304, SS316, PVC, MS

Power & Operation

• Power Supply: 24V DC (±10%), Solar Powered (Optional)

• Low Battery Indication: Provided

• Battery Life: 5 to 10 years (depending on sampling/communication interval)

• Response Time: < 10 seconds

Mechanical & Environmental

• Electronic Protection:

  • Field Mount IP-67

  • DIN Standard IP-54

  • Flameproof (CMRI IIA IIB Certified)

• Process Connection: ASA 150 Flanged (as per Table B 16.5)

• Ambient Conditions: –20°C to 70°C / 5–95% RH (Non-Condensing)

• Data Logging: 5-year capability (1 sample per day)

• Certification: CE
