ASME B16.11 Socket Weld 90° Elbow, Color : Silver

₹ 100 - ₹ 200 / Piece

MOQ100 Piece
Size1/2
Country of OriginIndia
Number Of FlowerASME B16.11 Socket Weld 90° Elbow
Form45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow
Class3000 LBS, 6000 LBS, 9000 LBS
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 2 Years
Nature of Business Manufacturer
GST No. 27AHEPM6224H1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Number Of FlowerASME B16.11 Socket Weld 90° Elbow
Size1/2
Class3000 LBS, 6000 LBS, 9000 LBS
Form45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow

Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L

Packaging: ASME B16.11 Socket Weld 90° Elbow Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Socket Weld 90° Elbow Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

Description

Description	Class Designation
Description	3000	6000	9000
Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps	½ - 4	½ - 2	½ - 2
	½ - 4	½ - 2	½ - 2
	½ - 4	½ - 2	½ - 2
Pipe Size by Wall Thickness	SCH 80 & XS	SCH 160	XXS

DIMENSIONS OF ASME B16.11 SOCKET WELD 90° ELBOW

Nominal Diameter		Depth of Socket	Dimension of Socket	Wall Thickness			Center to Bottom of Socket
				Wall Thickness			A
				Cmin			90°Elbow
DN	NPS	Jmin	d1	3000LB Sch80	6000LB Sch160	9000LB XXS	3000LB Sch80	6000LB Sch160	9000LB XXS
6	44934	10	10.7	3.2	3.5	-	11	11	-
8	44930	10	14.1	3.3	4	-	11	15	-
10	44993	10	17.5	3.5	4.4	-	13	15	-
15	44928	10	21.8	4.1	5.2	8.2	16	19	25
20	44989	13	27.4	4.3	6.1	8.6	19	22	28
25	1	13	34.2	5	7	10	22	27	32
32	1.1/4	13	42.9	5.3	7	10.6	27	32	35
40	1.1/2	13	48.3	5.6	7.8	11.2	32	38	38
50	2	13	61.1	6.1	9.5	12.2	38	41	41
65	2.1/2	16	76.9(73.8)	7.7	12.5	-	41	57	-
80	3	16	89.8	8.3	13.8	-	57	64	-
100	4	19	115.5	9.4	-	-	66	-	-

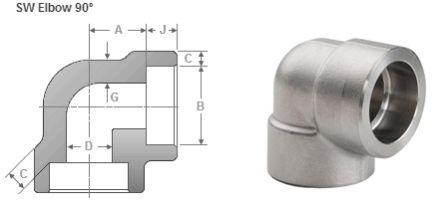

Dimensions Socket Weld Elbows - NPS 1/2 To 2 - 90° - 6000 LBS - ASME B16.11

NPS	Socket Bore	Depth Socket	Bore diameter	Socket wall thickness	Body wall thickness	Center to bottom of socket A
NPS	B	J	D	C	G	90°
44928	21.95 21.70	10	12.5 11	5.95 5.20	4.8	19.5
44989	27.30 27.05	13	16.3 14.8	6.95 6.05	5.55	22.5
1	34.05 33.80	13	21.5 19.9	7.90 6.95	6.35	27
1¼	42.80 42.55	13	30.2 28.7	7.90 6.95	6.35	32
1½	48.90 48.65	13	34.7 33.2	8.90 7.80	7.15	38
2	61.35 61.10	16	43.6 42.1	10.90 9.50	8.75	41
