ASME B16.9 Buttweld 45 ° Short Radius Elbow

Listing ID #6921371

  • MOQ 100 Piece
  • TypeShort Radius Elbow
  • MaterialCarbon Steel & Stainless Steel
  • Thickness20S, 40S, 80S, S10, S100, S120, S140, S160, S20, S30, S40, S60, S80, STD, XS, XXS, 10S, Schedule 5S
  • Country of OriginIndia
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 1 Year
  • Nature of Business Manufacturer
  • Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Short Radius Elbow
  • Material Carbon Steel & Stainless Steel
  • Thickness 20S, 40S, 80S, S10, S100, S120, S140, S160, S20, S30, S40, S60, S80, STD, XS, XXS, 10S, Schedule 5S
  • Country of Origin India
  • Schedule Sch 5 TO Sch XXS.
  • Sizes 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )

Standards: ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L



Packaging: ASME B16.9 Buttweld 45° Short Radius Elbow Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Buttweld 45° Short Radius Elbow Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

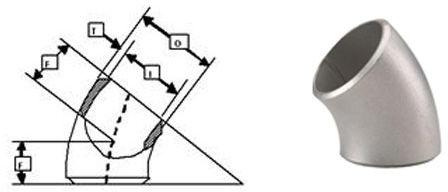

DIMENSIONS OF BUTTWELD 45 ° SHORT RADIUS ELBOW

Nom. Pipe Size Pipe Sched. or No. Center- to-end Dimen. Outside Dia. Inside Dia. Wall Thick. Approx. Weight (lb.)
    F OD ID T
STANDARD WEIGHT
44928 40 45054 0.84 0.622 0.109 0.1
44989 40 45123 1.05 0.824 0.113 0.1
1 40 45115 1.315 1.049 0.133 0.2
1.25 40 1 1.66 1.38 0.14 0.4
1.5 40 1.125 1.9 1.61 0.145 0.5
2 40 1.375 2.375 2.067 0.154 0.9
2.5 40 1.75 2.875 2.469 0.203 1.5
3 40 2 3.5 3.068 0.216 2.5
3.5 40 2.25 4 3.548 0.226 3.5
4 40 2.5 4.5 4.026 0.237 4.8
5 40 3.125 5.563 5.047 0.258 7.8
6 40 3.75 6.625 6.065 0.28 12
8 40 5 8.625 7.981 0.322 23
10 40 6.25 10.75 10.02 0.365 42
12 - 7.5 12.75 12 0.375 61
14 30 8.75 14 13.25 0.375 79
16 30 10 16 15.25 0.375 103
18 - 11.25 18 17.25 0.375 132
20 20 12.5 20 19.25 0.375 160
22 20 13.5 22 21.25 0.375 195
24 20 15 24 23.25 0.375 238
EXTRA STRONG
Nom. Pipe Size Pipe Sched. or No. Center- to-end Dimen. Outside Dia. Inside Dia. Wall Thick. Approx. Weight (lb.)
    F OD ID T
44928 80 45054 0.84 0.546 0.147 0.2
44989 80 45123 1.05 0.742 0.154 0.3
1 80 45115 1.315 0.957 0.179 0.4
1.25 80 1 1.66 1.278 0.191 0.5
1.5 80 1.125 1.9 1.5 0.2 0.6
2 80 1.375 2.375 1.939 0.218 1.1
2.5 80 1.75 2.875 2.323 0.276 2.1
3 80 2 3.5 2.9 0.3 3.5
3.5 80 2.25 4 3.364 0.318 4.8
4 80 2.5 4.5 3.826 0.337 6.5
5 80 3.125 5.563 4.813 0.375 11
6 80 3.75 6.625 5.761 0.432 18
8 80 5 8.625 7.625 0.5 35
10 60 6.25 10.75 9.75 0.5 56
12 - 7.5 12.75 11.75 0.5 80
14 - 8.75 14 13 0.5 100
16 40 10 16 15 0.5 131
18 - 11.25 18 17 0.5 172
20 30 12.5 20 19 0.5 210
22 30 13.5 22 21 0.5 259
24 - 15 24 23 0.5 302
