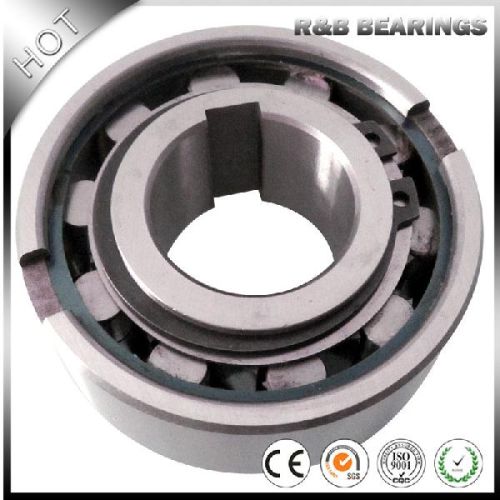

Gcr15 ASNU30 One Way Roller Clutch ID30*OD72*H17

Specifications:
type torque ir limiting speed (min) or limiting speed (min) dimensons mass
(mm) (kg)
d d b b h
asnu8 12 3300 5000 8 35 13 4 1.4 0.07
asnu12 12 3300 5000 12 35 13 4 1.4 0.06
asnu15 30 2400 3600 15 42 18 5 1.8 0.11
asnu17 49 2300 3400 17 47 19 5 2.3 0.15
asnu20 78 2100 3100 20 52 21 6 2.3 0.19
asnu25 125 1700 2600 25 62 24 8 2.8 0.38
asnu30 255 1400 2200 30 72 27 10 2.5 0.54
asnu35 383 1200 1900 35 80 31 12 3.5 0.74
asnu40 538 1100 1700 40 90 33 12 4.1 0.92
asnu45 780 1000 1600 45 100 36 14 4.6 1.31
asnu50 1013 850 1350 50 110 40 14 5.6 1.74
asnu60 1825 750 1050 60 130 46 18 5.5 2.77
asnu70 2300 600 950 70 150 51 20 6.9 4.16
asnu80 3275 550 850 80 170 58 20 7.5 6.09
asnu90 5325 500 750 90 190 64 20 8 8.2
asnu100 7250 450 680 100 215 73 24 8.5 12.6
asnu120 13500 370 550 120 260 86 28 10 22
asnu150 26625 300 460 150 320 108 32 12 42
asnu200 44500 230 350 200 420 138 45 16 93
feature
type asnu is a roller type freewheel nonbearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63..ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a h7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to k6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of â± s2.
