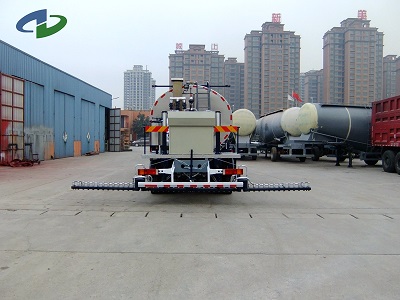

Asphalt Bitumen Sprayer

We offer asphalt bitumen sprayer.
Automatic asphalt sprayer is hi-tech professional construction equipment specialized in spraying emulsified asphalt, cutback asphalt, hot asphalt, hot modified asphalt and various binders.
It could be used to deal with upper and lower seal layer, prime layer, asphalt surfacing, waterproof layer, tack coat, asphalt penetration surface, fog seal layer and so on. It also could be used to transport liquid asphalt and other heavy oil.
Technical specifications
product model bnls0660 bnls0860 bnls1360
auxiliary engine (kwrpm) 262350 262350
chassis model dfl1160bx18 zz1161m4711d1 zz1256m4646c1
spray width (mm) 200-6000 200-6000 200-6000
spray volume (kgm2) 0.2-3.0 0.2-3.0 0.2-3.0
tank capacity (liter) 6000 8000 13000
nozzle quantity 48 48 48
spray precision ±1.5% ±1.5% ±1.5%
heater imported diesel burner (calorific value 10×104kcalh)
spray media hot modified asphalt, cutback, emulsion, etc.
Gvw (kg) 15800 16000 25000
dimension (mm) 8970×2490×3030 8740×2495×3420 10860×2495×3420
