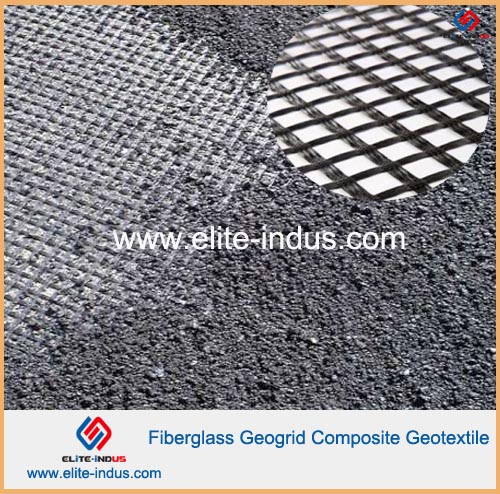

Asphalt Coated Reinforcement Fiberglass Geogrid Composite Geotextile

We offer Geogrid Composite Geotextile.
1,Introduction
Fiberglass geogrid composite geotextile is a compound product made of fiberglass geogrid and geotextile.It is the new material that can prevent the reflection cracking, water damage and improving loading capacity in the project of road construction and renovation. It has the property of high temperature rutresistance and anti-fatigue cracking, therefore prolong the life time of pavement.
2. Product performance:
(1)High tensile strength and low elongation ratio
(2)No long-term creep
(3)Thermal stability
(4)The compatibility of asphalt is high
(5)Physical chemistry stability is good
(6)Aggregate embedded locks and limit characteristics
3,Application
(1)Road surface reinforcement of road, railway and airport road
(2)Maintenance, reconstruction and widening of the old road surface
(3)Reinforcement of soil roadbed, irrigation channels and water dams
(4)Strengthens, the bridge connection surface
4,Main specification:
Fiberglass geogrid can complex polyester/polypropylene nonwoven or woven geotextile
Width: normal width 3.9m,1.0m-6.0m all can do
Length:nomal is 50m/100m,or as per your request.
The glassfiber geogrid tensile strength can be 25-25kN/m to 200-200kN/m
The geotextile weight can be 10g/m2 to 1200g/m2
