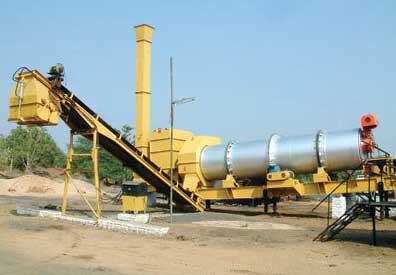

We are a trusted Manufacturer, Exporter, and Supplier of superior quality Asphalt Drum Mix Plant that is developed and designed using the latest technology. Our Asphalt Drum Mix Plant ensures a reliable performance. We offer customized Asphalt Drum Mix Plant as per requirements of honored customers. Why Our Asphalt Drum Mix Plant?

• Easy to operate
• Requires less maintenance
• Designed as per international standards
• High production rate
• Low dust emissions
• Less fuel consumption
• Computerized control panel board

Plant Comprises :

• Four Bin Feeder : This unit is provided to store the Aggregates & Deliver them to the System as per required. Sturdy Design & Quality Fitment make this unit running for years without any trouble. Options for Storage & Feeding System are available as per plant model.
• Thermo Drum Unit : Thermo Drum is the Most important unit of the entire plant. Specially Designed Buckets, Advance Firing Systems, Sturdy Drive systems etc are some of the parts which assure Long Term Reliable Plant Operation. This unit is available in three models as per plant model.
• Bitumen Tank : Fully Insulated Bitumen Storage & Heating Tanks are available with various capacity models. Pumping unit is fitted on this Tank to send the Heated Bitumen in the Thermo drum unit. Sufficient thickness of Insulation & Advanced Oil Burner saves the valuable Fuel for Heating of the Bitumen.
• Thermo Drum Burner : Thermo Drum Burner is the heart of the entire system and hence its efficiency, ease of serviceability etc. are most important factors. The burner is fully automatic and two stage (High & Low) pressure jet type system.
  This burner is suitable to use LDO/Diesel as fuel and is fitted with remote control system to detect flame failure and have electric spark ignition system.
  The temperature is controlled through thermostatic control device to operate the plant in desired temperature range. The nozzle system is so designed that the nozzle can be cleaned during running condition hence nil downtime for nozzle cleaning.
• Load Out Conveyor Belt : Load out conveyor Belt transfers the Mixer Material from Thermo Drum to the Gob Hopper from which the material is discharged to the Truck. Gob Hopper is provided with sufficient storage capacity to avoid segregation of material.
• Slinger Conveyor : Slinger Conveyor is provided to transfer the Screened Raw material from Four Bin Feeder to the Thermo Drum. Load Cell is fitted on this conveyor to weigh the material being transferred.
• Vibrating Screen : Vibrating Screen is used to remove oversize aggregates from the Raw Material coming from the Four Bin Feeder.
• Mineral Filler : Mineral Filler is provided with sufficient storage & feeding capacity. Ruggedly designed structure and hopper for filler storage. Controlled discharge through variable speed driven rotary valve pushed by pressurized airflow by air-compressor.
• Fuel Tank (L.D.O Tank) : Available with us is L.D.O. Tank, which is cost effective, durable and used in various industries for storing chemicals, solvents and other liquids. Fuel Tank Fuel Tank is provided to store LDO or Furnace Oil for the Burners. Furnace Oil Heating System is provided as Optional attachments
• Control Panel Board with Cabin : Microprocessor Base module software based fully automatic, computerize controls. Both automatic and manual mode of operation. Up to date print out records containing all parameters of asphalt production. Dust and scratch proof panel board housed in insulated, air-conditioned control room.Extended junction box for easy connection, maintenance and fault tracing.
• Pollution Control Unite : Venture system provided for higher efficiency Brass spray nozzles for anti-rusting long performance an easy maintenance.
• Mix Storage Silo for Asphalt Drum Mix Plant

Specifications ModelDM-20DM-30DM-45DM-60DM-90DM-120Thermo Dryer UnitDiameter (m)11.131.31.51.82.1Length (m)3.96.16.256.756.757.5Capacity range (TPH)*15to2030 to4545to6060to90 90 to120120 to150Exhauster (CFM)5500750010500145001850022500Burner Rating (Ltrs. / Hr.)150150250350550900qInsulation (Cera wool in mm)25252525`2525Four Bin Feeder ColdfeedGathering conveyor width (mm)600600600600`600`600Belt feeder width (mm)500500500500500500No. of Bins444444Bin Capacity (MT)5.578101215Slinger ConveyorConveyorWidth(mm)600600600600600600Loadout ConveyorConveyor Width (mm)600600600600600600Load out Height (m)3.23.23.23.23.23.2Hopper Capacity (kg)35057575075010002000Power RequirementsDrum Drive (HP)101520254060Exhauster (HP)1015202550704 Bin Feeder Hopper (HP)4x1.54x1.54 x 24 x 24 x 34 x 3Feeder Gathering Conveyor (HP)35557.57.5Slinger Conveyor (HP)35557.57.5Vibrating Screen (HP)0.50.51122Load out Conveyor (HP)33557.57.5Hydraulic Power pack (HP)222225Asphalt Pump (HP)333335Mineral Filler Rotary Valve (HP)1.51.52255Dryer Automatic Burner------------Fuel Pump (HP)333335Blower (HP)557.57.51525Bitumen Tank Capacity (MT)151515202020Insulation (Glass wool in mm)505050505050Ldo TankCapacity (Ltrs.)1500150020006000800010000Total Connected LoadLoad80 KVA100KVA120KVA135KVA220KVA300KVA
